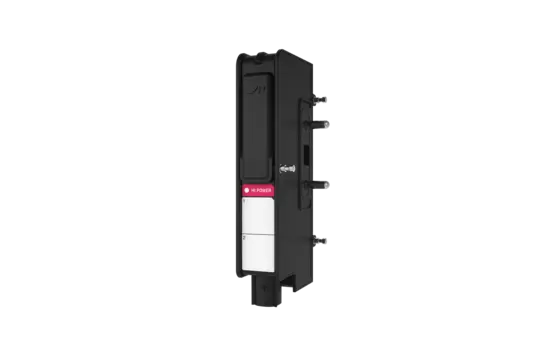

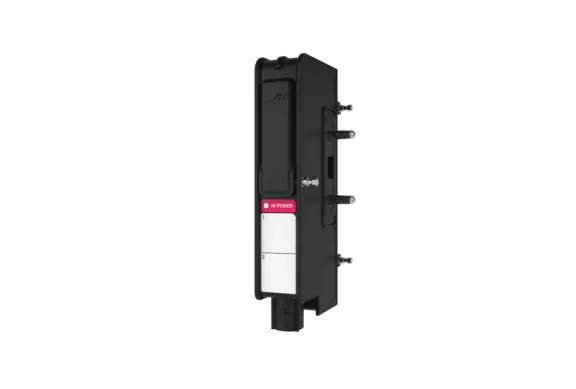

Learn moreThe high power module provides 2 x 20 A output channels.
The High power module is a digital output module and can be used to drive high powered electrical loads such as pumps, fans, heaters, refrigerators and Hi-Fi equipment etc. The high power module supports up to 2 devices.
Channel capabilities include:
| Power Specification | |
|---|---|
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Maximum output current | 40 A (20 A per channel) |
| Minimum output current | 50 mA per channel |
| Data Connections | |
|---|---|
| Hi power connections | 2 x 20 A output channels |
| Module communications | Internal 6–pin connection |
| Physical Data | |
|---|---|
| Module Dimensions: H/W/D (not including busbars) | 160 mm (6.30 in) x 28.00 mm (1.10 in) x 76.50 mm (3.01 in) |
| Weight | 0.26 Kg (0.57 lb) |
| 1 | Input or output modules (All modules are Supplied fitted with Molex connector(s) Output modules are supplied with fuses fitted). |
| 2 | Documentation |
If you are a boat builder or system integrator working with a boat builder, Raymarine YachtSense experts can partner with your engineering team to design a YachtSense system. To connect with a YachtSense expert contact us today.
