Axiom DV

7" touch screen chartplotters with DownVision™ sonar

Product Options
Axiom DV
Axiom DV all-in-one Chartplotter

Axiom DV all-in-one Chartplotter

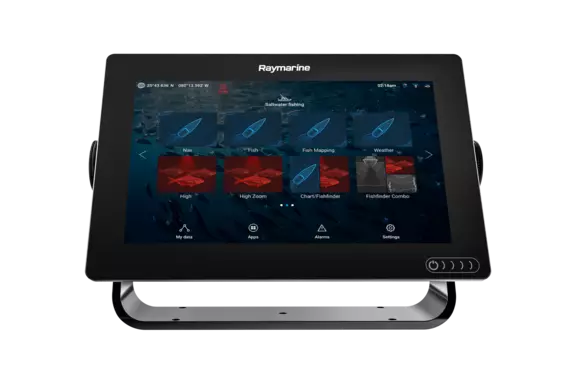

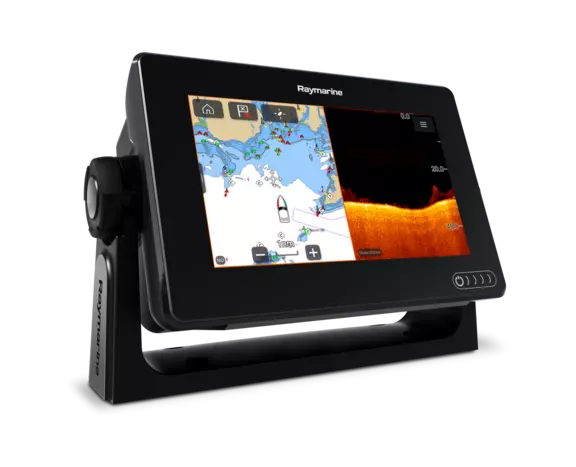

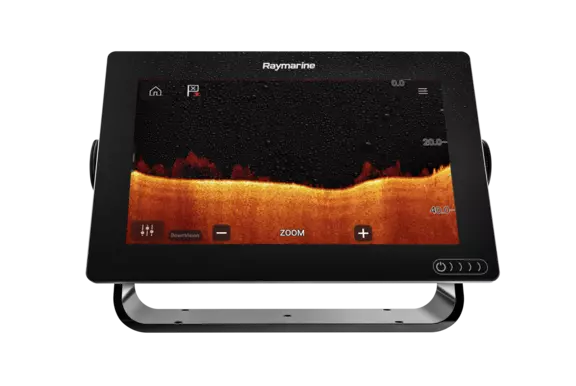

Axiom DV chartplotter displays feature a built-in GPS receiver, simple touchscreen operation, and fast quad-core performance. Utilize DownVision for structure identification and wide spectrum CHIRP sonar for fish detection and bottom tracking.

Use Axiom as a full-featured chartplotter or expand Axiom with additional displays and sensors like radar, sonar, instruments, autopilot, and more. The Axiom DV has a built-in 600-watt digital sonar allowing you to fish even deeper with support for 50 kHz and 200 kHz frequencies using optional adapter cable and transducer.

Each Axiom DV features Wi-Fi and Bluetooth connectivity as standard, allowing connections to the latest Raymarine apps for tablets and smartphones.

Blazing fast performance and power

Award-winning Axiom chartplotter displays deliver fast and fluid performance, thanks to a quad-core processor and the powerful LightHouse operating system. Ready to navigate with a built-in GPS receiver, Axiom chartplotter displays also support a range of sensors and accessories, including Quantum radar, CHIRP sonar modules, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allow connection to the latest Raymarine apps for tablets and smartphones.

Axiom DV Models

Axiom DV systems feature a 7-inch screen. Optional bundle packs are available with a depth transducer and/or navigation charts.

Axiom 7 DV | CPT-S Transducer

SKU: E70364-01
Axiom 7 DV | CPT-S Transducer
  • 7" Display

  • CPT-S transom mount CHIRP transducer included

Axiom 7 DV | CPT-100DVS Transducer

SKU: E70364-02
Axiom 7 DV | CPT-100DVS Transducer
  • 7" Display

  • CPT-100 DVS transducer included

Axiom DV Resources

Sonar
Channels

CHIRP conical sonar, DownVision

Depth range

0.6 m (2 ft) to 183 m (600 ft) Depending on water conditions

Physical
Transducer connection

9 pin DownVision type connector

Power
Power consumption

10 W

LCD
Resolution

Axiom 7: WVGA 800 x 480

Axiom 9: WVGA 800 x 480

Axiom 12: WXGA 1280 x 800

Viewing angle

Axiom 7: Top 60° / Bottom 70° / Left 70° / Right 70°

Axiom 9: Top 60° / Bottom 70° / Left 70° / Right 70°

Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°

Type

Axiom 7: TN (Twisted Nematic)

Axiom 9: TN (Twisted Nematic)

Axiom 12: IPS(In-Plane-Switching

Size (diagonal)

Axiom 7: 7"

Axiom 9: 9"

Axiom 12: 12"

Ratio

5:3

Color depth

24-bit

Illumination

1200 nits / 1200 cd/m2

Number of simultaneous touches

2

GNSS (GPS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, GLONASS, Beidou

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Time to first fix from cold start

< 2 minutes

Physical
Dimensions (Trunnion mounted)

Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)

Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)

Axiom+12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)

Dimensions (Surface/Flush mounted)

Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)

Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)

Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)

Accessory connection

USB Micro B

Ethernet connection

RayNet (10/100 Mbits/s)

External storage

MicroSDXC card slot x 1

NMEA 2000 connection

DeviceNet (male connector built into power cable)

Wireless connections

Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n

Internal storage

4GB Solid State (2 GB usable)

Environmental
Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Power
Operating voltage range

8 V dc to 16 V dc

Fuse rating

7 A

Nominal supply voltage

12 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

What's in the box?


1

MFD (Chartplotter)

2

Trunnion bracket

3

Trunnion knobs x 2

4

Trunnion mouny suncover

5

Panel mount gasket

6

Threaded studs (M5x58) x 4

7

Thumb nuts (M5) x 4

8

Documentation

9

Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
