Axiom Pro RVX

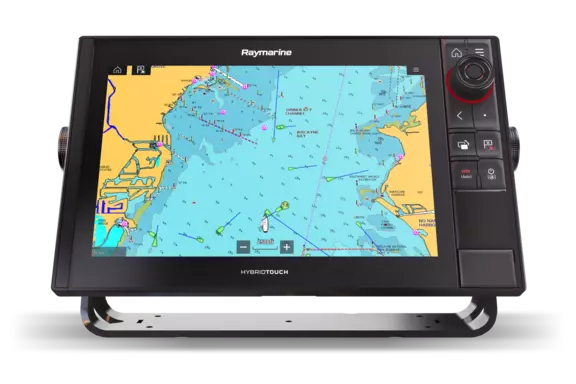

9, 12 and 16 inch HybridTouch chartplotters with RealVision 3D and 1kW CHIRP sonar technology

Product Options
Axiom Pro RVX
George Gozdz Axiom Pro on Caymas boat

For Those Who Want It All

Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro RVX is the standard for networked chartplotter displays. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, it delivers a fluid and intuitive navigation experience.

Axiom Pro RVX is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.

Axiom Pro RVX Key Features

Blazing Fast

Axiom Pro’s quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.

Video Monitoring

Keep an eye on everything onboard from the helm. Axiom Pro supports both video over IP and analog cameras.

Bold and Bright

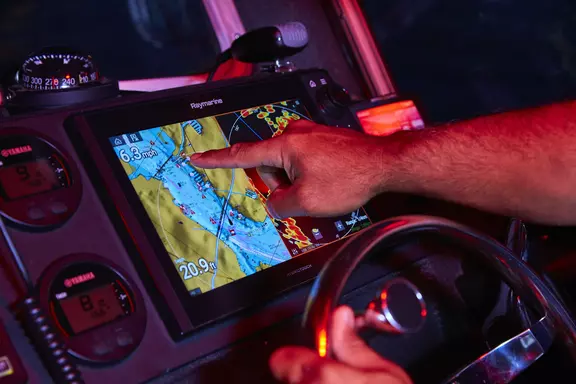

Raymarine optical bonding technology and IPS display panels give you stunning color, clarity, and contrast in all lighting conditions. Plus, Axiom Pro looks great even through polarized sunglasses.

Enhanced Thermal Awareness

Combine Axiom Pro with the FLIR thermal cameras and enjoy ClearCruiseTM IR object detection. Axiom Pro will alert you automatically to hazards in the vessel’s path.

Safer Navigation

Axiom Pro works with Raymarine's full lineup of Cyclone and Quantum solid-state radars for all-weather collision avoidance and advanced bird identification technology.

Ready to Network

Axiom Pro is ready to network with all the latest electronics using standard NMEA2000 and NMEA0183 connectivity.

Superior Sonar

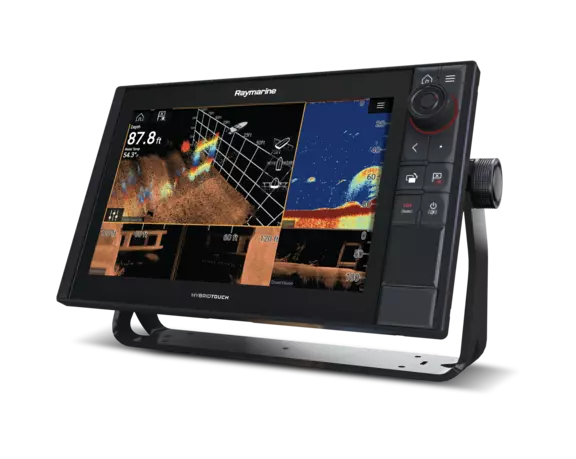

  • Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar.
  • CHIRP DownVision and SideVision sonar delivers stunning detail and fish identification.
  • Low, Medium, or High wide spectrum of CHIRP sonar bands for deep, mid-range and shallow water fishing.
  • True 1kW sonar – no compromises performance targets bait, fish, thermoclines at depths to 5,000 feet.
  • Go deeper with the optional CP470 or CP570 professional CHIRP sonar modules with up to 2 kW output power.
Axiom Pro Superior Sonar
Axiom Pro Intuitive Control

Intuitive Control

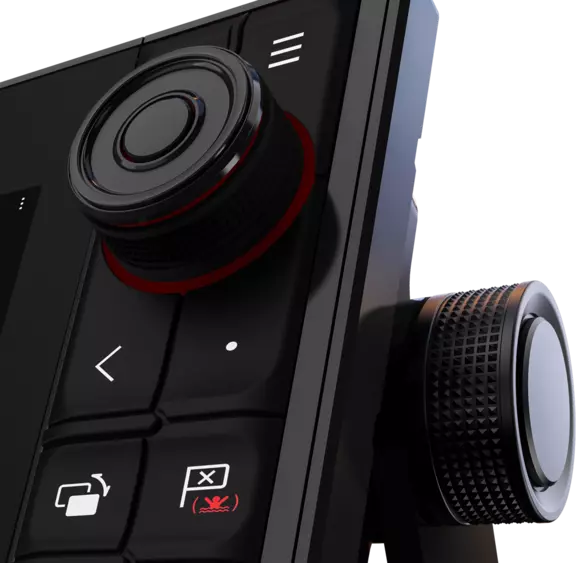

HybridTouch™ - Your choice of simple tablet like touch screen interaction or confident keypad control in rough seas.

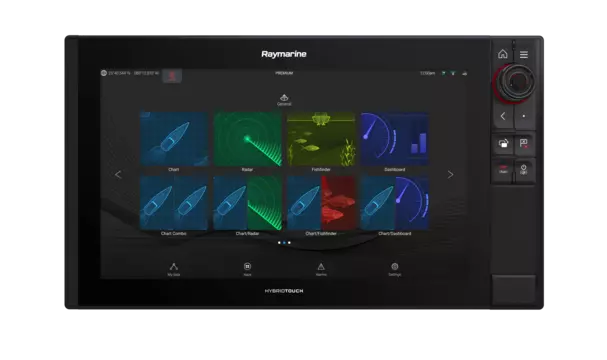

LightHouse OS - Fast, fluid and easy to learn. The Lighthouse operating system interface is uncluttered and easy to personalize for your style of boating.

Custom Key - Get instant access to your favorite function with Axiom Pro’s user-programmable Custom Key.

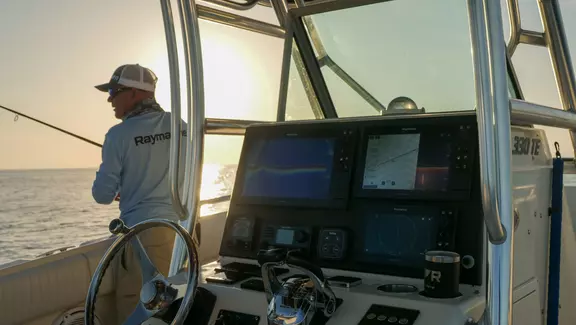

Marko's May Content Fishing on Center Console Boat

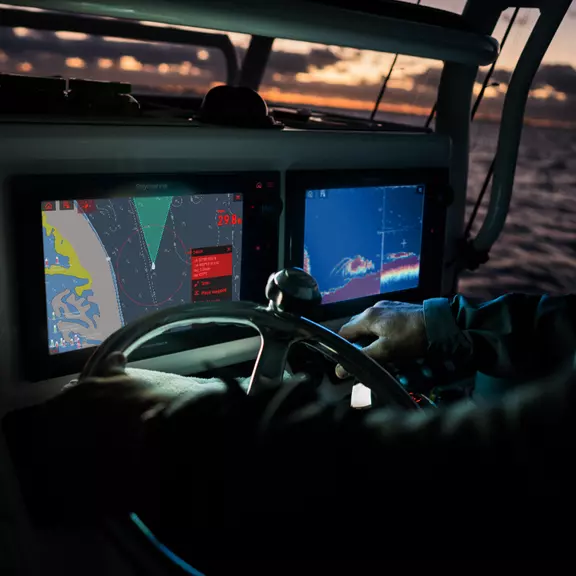

Teledyne FLIR M364C installed on Safe Boat Police boat with Raymarine Axiom Pro
Team Caliente Fishing Team

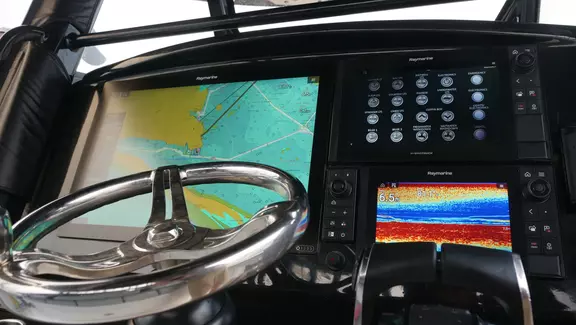

George Gozdz  Caymas Yachts helm with two Axiom Pro 12

Axiom Pro RVX Models

Axiom Pro RVX are available in 9, 12 or 16-inch screen sizes.

Axiom Pro 9 RVX

Axiom Pro 9 RVX


  • 9" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

Axiom Pro 9 RVX | LightHouse Charts North America

Axiom Pro 9 RVX | LightHouse Charts North America


  • 9" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom Pro 9 RVX | Navionics+ USA & Coastal Canada Charts

Axiom Pro 9 RVX | Navionics+ USA & Coastal Canada Charts


  • 9" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded Navionics US and Coastal Canada chart card

Axiom 12 Pro RVX

Axiom 12 Pro RVX


  • 12" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

Axiom 12 Pro RVX | LightHouse Charts North America

Axiom 12 Pro RVX | LightHouse Charts North America


  • 12" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 12 Pro RVX | Navionics+ USA & Coastal Canada Charts

Axiom 12 Pro RVX | Navionics+ USA & Coastal Canada Charts


  • 12" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded Navionics US and Coastal Canada chart card

Axiom 16 Pro RVX

Axiom 16 Pro RVX


  • 16" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

Axiom 16 Pro RVX | LightHouse Charts North America

Axiom 16 Pro RVX | LightHouse Charts North America


  • 16" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 16 Pro RVX | Navionics+ USA & Coastal Canada Charts

Axiom 16 Pro RVX | Navionics+ USA & Coastal Canada Charts


  • 16" Display

  • RealVision 3D & 1kW CHIRP Sonar Built In

  • Includes preloaded Navionics US and Coastal Canada chart card

Axiom Pro RVX Resources

Physical
Dimensions (Trunnion mounted)

Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (Surface/Flush mounted)

Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Accessory connection

USB Micro B

Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports

NMEA 0183 connection

Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate

External storage

2 front mounted MicroSDXC card slots

NMEA 2000 connection

DeviceNet connector

Wireless connections

Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n

Internal storage

16GB Solid State

Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers

LCD
Size (diagonal)

Axiom Pro 9: 9.0"

Axiom Pro 12: 12.1"

Axiom Pro 16: 15.6"

Ratio

Axiom Pro 9: 16:9

Axiom Pro 12: 16:9

Axiom Pro 16: 16:10

Resolution

Axiom 2 Pro 9: 1280 x 720 HD

Axiom 2 Pro 12: 1280 x 800 WXGA

Axiom 2 Pro 16: 1920 x 1080 FHD

Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°

Type

IPS (In-Plane Switching)

Color depth

24-bit

Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2

Number of simultaneous touches

1 to 16

Power
Power consumption @ 12 V dc

Axiom Pro 9: 33.12 W

Axiom Pro 12: 29.88 W

Axiom Pro 16: 42.36 W

Power consumption @ 24 V dc

Axiom Pro 9: 30.96 W

Axiom Pro 12: 28.8 W

Axiom Pro 16: 40.8 W

Operating voltage range

8 V dc to 32 V dc

Off current @ 24 V dc

18 mA (0.43 W)

Nominal supply voltage

12 V dc / 24 V dc

Off current @ 12 V dc

11 mA (0.13 W)

LEN (NMEA 2000 Load Equivalency Number)

1

Current

5 A

Fuse rating

15 A

Sonar
RealVision Depth range

25 pin RealVision type connector: High CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)

1 kW Depth range

11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)

Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

GNSS (GPS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, Galileo, GLONASS, Beidou

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes

What's in the box?


1

MFD (Chartplotter)

2

Front bezel pieces and Upper keypad

3

Panel mount gasket

4

Suncover

5

Trunnion bracket

6

Trunnion knobs x 2

7

Fixings (M4x40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)

8

Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))

9

Power/Video/NMEA 0183 cable 1.5 m (4.92 ft)

10

Documentation

11

RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)

12

DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
