Axiom XL

16, 19, 22, and 24-inch premium, glass bridge chartplotters with advanced networking and video integration capabilities

Product Options
Axiom XL
Experience Superior Performance with Axiom XL Displays

Experience Superior Performance with Axiom XL Displays

Axiom XL displays offer superior performance, large format visibility, and elegant simplicity.

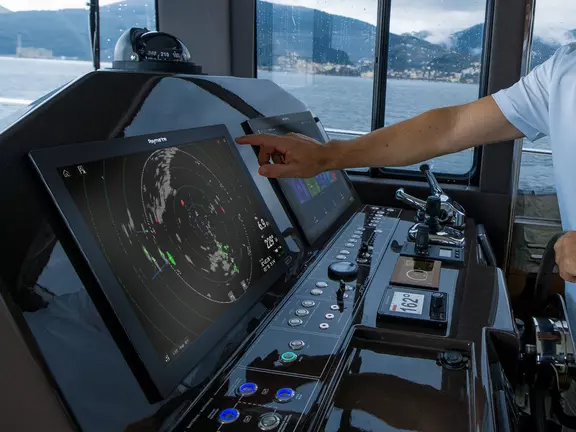

Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge chartplotters can be installed in both open cockpits and enclosed bridge stations.

Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.

Axiom XL Key Features

Flagship Performance

At the heart of each Axiom XL display is a blazing fast quad-core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into a single or multi-display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom+ and Axiom Pro displays at remote stations.

Elegant Simplicity

Axiom XL displays are powered by Raymarine’s LightHouse operating system and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.

Superior Integration

A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP, and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness, and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.

Transformative All-Glass Display for Smart Boating

Transformative All-Glass Display for Smart Boating

The smart and rugged all-glass display is designed with optimal features for both flush and surface mounting. It boasts a sleek, buttonless design that comes with swipe-to-power touch control.

Discover the future of boating with the YachtSense Ecosystem, LightHouse apps, and engine integration. These enhance the Axiom XL's capabilities, introducing digital controls, engine data display and mobile entertainment streaming.

With the keep watch feature, monitor your crew using marine video cameras. This links analog and IP cameras to show four simultaneous videos. Axiom XL's recording ability serves as an onboard DVR, capturing every moment.

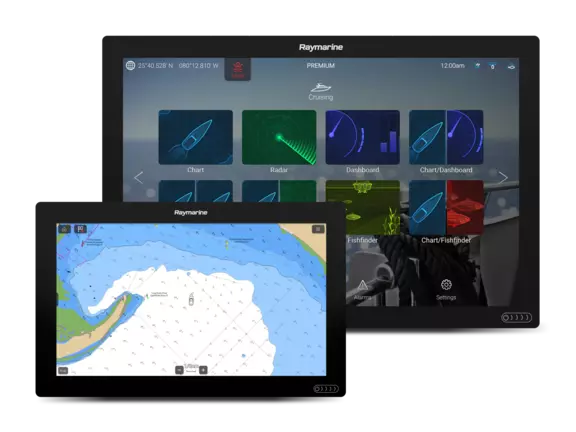

Fast navigation control with LightHouse

Fast navigation control with LightHouse

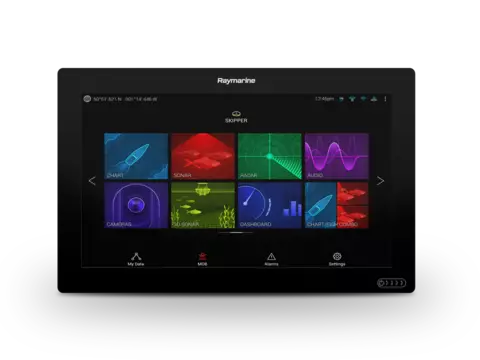

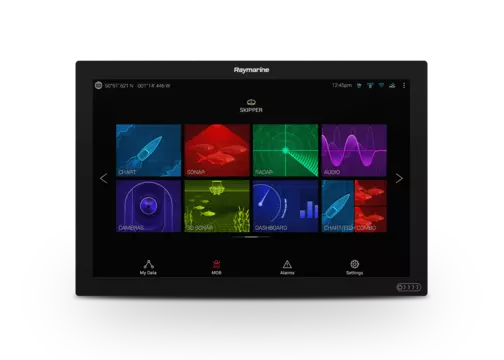

Get underway faster with the user-friendly, easy to learn LightHouse operating system. Spend seconds, not minutes plotting your next course.

Access the Axiom XL everywhere onboard using HDMI video output. Monitor the chartplotter on a large screen below deck or stream to your mobile device with the Raymarine app. Vessel automation is available for boat builders with Raymarine YachtSense solutions, providing touchscreen control of onboard electrical devices.

Add a Raymarine Quantum 2 or Cyclone radar featuring doppler target tracking for enhanced visibility and ClearCruise™ for augmented reality and object recognition. A FLIR thermal camera offers the ultimate upgrade for safe day and nighttime navigation.

Enhanced Navigation with Superior Charts and Autopilots

Enhanced Navigation with Superior Charts and Autopilots

Embark on your journey with superior charts at your disposal. These include Raymarine LightHouse Charts, Navionics, and C-MAP. With these top-notch navigation charts, you're guaranteed a smooth and precise voyage.

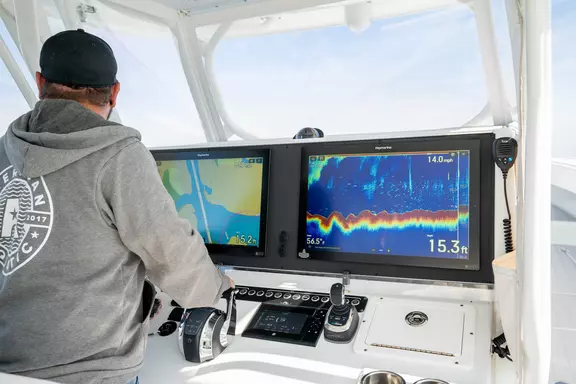

Stay true to your course with the seamless integration of Evolution autopilot. Simply plot a waypoint on the Axiom XL, then engage the intelligent sensor of Evolution to maintain the perfect course. Furthermore, the Axiom XL comes fishing ready. It offers remote CHIRP sonar module options, which include the award-winning RealVision™ 3D sonar and high-power CHIRP.

Axiom XL Models

Available in 16 and 24-inch display sizes

Axiom XL 16 Chartplotter

SKU: E70399
Axiom XL 16 Chartplotter
  • 16" Display

Axiom XL 16 Chartplotter Kit

SKU: T70427
Axiom XL 16 Chartplotter Kit
  • 16" Display

  • Remote chart card reader, alarm module and cable kit included

Axiom XL 24 Chartplotter

SKU: E70401
Axiom XL 24 Chartplotter
  • 24" Display

Axiom XL 24 Chartplotter Kit

SKU: T70430
Axiom XL 24 Chartplotter Kit
  • 24" Display

  • Remote chart card reader, alarm module and cable kit included

Axiom XL Resources

Physical
Dimensions

Axiom XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Axiom XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)

AxiomXL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Weight

Axiom XL 16: 5.9 kg (13 lbs)

Axiom XL 19: 7.6 kg (16.76 lbs)

Axiom XL 22: 9.9 kg (21.83 lbs)

Axiom XL 24: 11.3 kg (24.9 lbs)

USB connection

USB-A: Touch input, USB-B: Touch output

Accessory connection

USB Micro B

GPS antenna connection

TNC type connector

External storage

Remote card reader required

NMEA 0183 connection

Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate

Ethernet connection

PoE RayNet (10/100/1,000 Mbits/s) x 3

HDMI connections

HDMI in, HDMI out

NMEA 2000 connection

DeviceNet connector

Analog video connections

Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)

Wireless connections

Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n

External alarm connection

Bare-ended wires x 2

Internal storage

64 GB Solid State

Power
Power consumption @ 12 V dc

Axiom XL 16: 77.88 W

Axiom XL 19: 87.48 W

Axiom XL 22: 97.32 W

Axiom XL 24: 93.6 W

Power consumption @ 24 V dc

Axiom XL 16: 70.80 W

Axiom XL 19: 76.08 W

Axiom XL 22: 81.84 W

Axiom XL 24: 80.88 W

Off current @ 12 V dc

PoE: 2,250 mA (27 W), No PoE: 360 mA (4.32 W)

Off current @ 24 V dc

PoE: 1,150 mA (27.6 W), No PoE: 240 mA (5.76 W)

PoE operating voltage range

9.5 V dc to 32 V dc

Current

9.5 A

Operating voltage range

8 V dc to 32 V dc

Fuse rating

15 A

Nominal supply voltage

12 V dc / 24 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

LCD
Resolution

Axiom 2 XL 16: 1920 x 1080 pixels

Axiom 2 XL 19: 1920 x 1080 pixels

Axiom 2 XL 22: 1920 x 1080 pixels

Axiom 2 XL 24: 1920 x 1200 WUXGA

Size (diagonal)

Axiom 2 XL 16: 15.6"

Axiom 2 XL 19: 18.5"

Axiom 2 XL 22: 21.5"

Axiom 2 XL 24: 24"

Illumination

Axiom XL 16: 1300 nits / 1300 cd/m2

Axiom XL 19: 1200 nits / 1200 cd/m2

Axiom XL 22: 1275 nits / 1275 cd/m2

Axiom XL 24: 1300 nits / 1300 cd/m2

Viewing angle

Axiom 2 XL 16: Top 88° / Bottom 88° / Left 88° / Right 88°

Axiom 2 XL 19: Top 88° / Bottom 88° / Left 88° / Right 88°

Axiom 2 XL 22: Top 89° / Bottom 89° / Left 89° / Right 89°

Axiom 2 XL 24: Top 89° / Bottom 89° / Left 89° / Right 89°

Ratio

Axiom 2 XL 16: 16:9

Axiom 2 XL 19: 16:9

Axiom 2 XL 22: 16:9

Axiom 2 XL 24: 16:10

Type

IPS (In-Plane Switching)

Color depth

24-bit

Number of simultaneous touches

2

Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

What's in the box?


1

MFD (Chartplotter)

2

Suncover (Silicone)

3

Rear mounting bars x 2

4

Documentation

5

Mounting gasket tape

6

Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) right-angled

7

Mounting bar fixings (M5x20 pozi countersunk) x 4

8

Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4

9

DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)

10

Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))

11

RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)


Tim Dean_Australian Ambassador

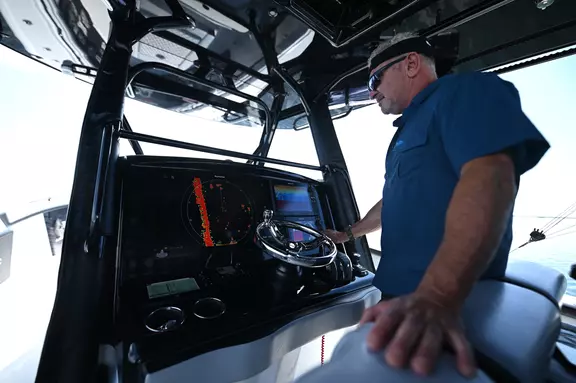

Team Caliente Fishing Team

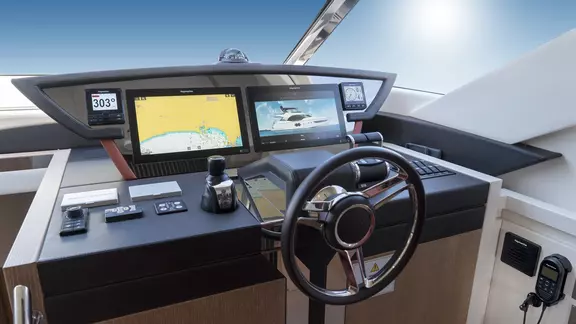

Axiom XL Helm Installation

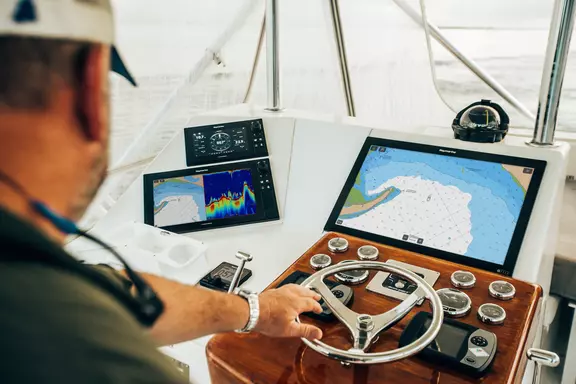

Axiom XL Dual Display Helm Installation. Installation includes p70Rs and i70s
