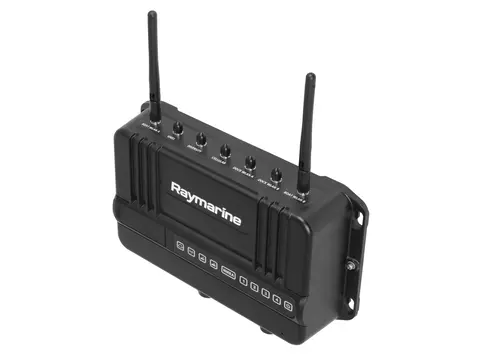

YachtSense Link

4G enabled marine router with GPS, Wi-Fi, Raynet and digital input/output ports

Product Options
YachtSense Link
Captain using a mobile phone whilst stood at the helm of a boat

Marine Mobile Router

YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected.

Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.

Remote Monitoring

  • GeoFence provides alerts and notifications if your vessel moves in or outside a safety zone.
  • Low power consumption mode supports GeoFence remote monitoring (subscription required)
  • x4 input and output low voltage digital switching channels
  • Easy DIY setup using a web browser or Axiom display
YachtSense Link & Mobile Phone image
Boater holding an iPhone showing a geofenced boat on a marine chart.

Always Connected

  • Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard network
  • Mobile broadband connection to 4G (LTE) networks (SIM card and data plan required)
  • Supports dual SIM cards for seamless connectivity to international mobile networks
  • Integrated GPS with a range extending 4 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)

Stay Informed

  • Connect and view real time instrument and navigation data on board or remotely
  • x4 Raynet Ethernet ports for connecting Raymarine devices
  • SeaTalkNG/NMEA2000 port
  • Rugged IPX6 enclosure is shock and vibration resistant
Boater using an Axiom display

YachtSense Link


4G enable marine router with GPS, Wi-Fi, Raynet and digital input/output ports SKU: E70640

4G enable marine router with GPS, Wi-Fi, Raynet and digital input/output ports


YachtSense Link Resources

Conformance
Product markings

WEEE Directive

Standards

Verizon certified

Standards

Radio Equipment Directive 2014/53/EU

Standards

PTCRB: 4G, 3G, 2G approved

Standards

NMEA 2000 certified

Standards

ISED ICES-003

Standards

FCC Part 15C and Part 15E

Standards

EN 60945:2002 (Europe, Australia New Zealand)

Product markings

CE

Product markings

Australian Tick

Standards

AT&T certified

Network (Cellular / Diversity)
2G/3G/4G frequencies

WCDMA: B1/B2/B4/B5/B6/B8/B19

2G/3G/4G frequencies

LTE-TDD: B38/B39/B40/B41

2G/3G/4G frequencies

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

2G/3G/4G frequencies

GSM: B2/B3/B5/B8

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6, IPx7

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-25 °C to +55 °C (-13 °F to 131 °F)

Physical
Dimensions

Length: 242.00 mm (9.53 in), Height: 162.20 mm (6.39 in), Depth: 63.00 mm (2.48 in)

Weight

1.03 Kg (2.26 lb)

Power
Operating voltage range

8 V dc to 32 V dc

Nominal supply voltage

12 V dc

Network
Maximum upload speed

50 Mbps (Actual performance will vary and usually be less than the stated maximums)

Maximum download speed

150 Mbps (Actual performance will vary and usually be less than the stated maximums)

LTE category

4

Network (DOCK WLAN)
Wi-Fi station mode frequencies

5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm

Wi-Fi station mode frequencies

5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm

Wi-Fi station mode frequencies

2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm

Network (BOAT Wi-Fi)
Wi-Fi access point mode frequencies

2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 13.28 dBm

What's in the box?


1

YachtSense Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted)

2

4 x mounting fixings (PA 4 x 25 mm self tapping screws)

3

Documentation

4

5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket

5

2 x Dipole antenna (BOAT Wi-Fi)

6

RayNet to RJ45 cable 1 m (3.3 ft)

7

SeaTalkng spur cable 1 m (3.3 ft)

8

Power cable with 8 A fitted fuse 1.5 m (4.9 ft)

9

Input cable (5-wire) 0.5 m (1.64 ft)

10

Output cable (8-wire) 0.5 m (1.64 ft)
