i50 Depth

The i50 Depth displays minimum and maximum depth with audible shallow, anchor and deep water alarms. Extra large digits and a simple keypad control make the i50 easy and quick to use.

Product Options
i50 Depth
Sailboat with Raymarine

Real-time water depth display

The i50 Depth instrument display reveals real-time water depth along with audible and visible alerts for shallow water. It also tracks maximum and minimum depth as well as the depth trend. With large digits and audible alarms for deep, anchor, and shallow water, this display works perfectly for sail boats, power boats, yachts, and RIBs. The i50 Depth instrument is engineered for easy viewing. Its high-contrast LCD, oversized digits, and red backlighting combine to deliver superior visibility under all conditions. i50 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. I50 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.

i50 Depth Key Features

  • Oversized digits for easy viewing by day or night
  • Red backlighting enhances night visibility
  • SeaTalkng, NMEA2000 and SeaTalk network compatible
  • Built-in depth transducer interface
  • Compact footprint
  • Low power consumption
  • Surface mount or optional trunnion mount kit


i50 group

Full Integration with Raymarine Equipment

All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

i50 Depth Models

Choose an i50 Depth display only or i50 Depth pack with transducer

i50 Depth Display (Digital)

SKU: E70059
i50 Depth Display (Digital)
  • i50 Depth Display (Digital) only

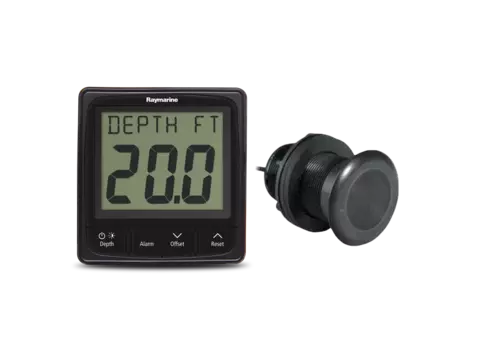

i50 Depth Pack, with Through Hull Transducer

SKU: E70148
i50 Depth Pack, with Through Hull Transducer
  • i50 Depth Pack with P319 Depth through hull transducer

i50 Depth Resources

Physical
Dimensions

Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

Connections

2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-13 °F to 131 °F)

Conformance
Standards

Europe 2004/108/EC

Power
Current (typical / max)

45-65 mA (display only) / 200 mA maximum (transducer connected)

Nominal supply voltage

12 V dc

Operating voltage range

10 V dc to 16 V dc

Power consumption

< 1 W typical (display only), 2.4 W maximum (transducer connected)

LEN (NMEA 2000 Load Equivalency Number)

4

What's in the box?


1

i50 Instrument display

2

Suncover (to match i70s, p70s, p70Rs, eS Series)

3

Front bezel (to match i70s, p70s, p70Rs, eS Series)

4

Gasket

5

Suncover (to match a, c, e Series)

6

Front bezel (to match a, c, e Series)

7

400mm (15.7 in) SeaTalkng spur cable

8

SeaTalkng blanking plug

9

Fixing screws x4

10

Documentation
