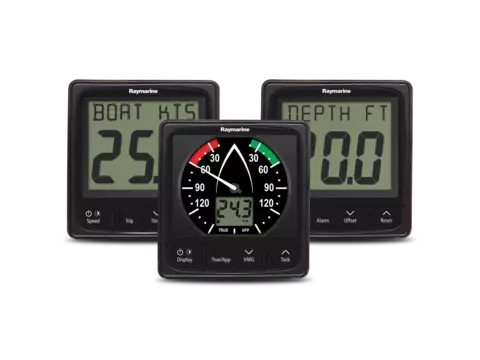

i50/i60 Wind, Speed, Depth Pack

The i50 & i60 Wind, Speed and Depth Pack contains 3 instrument displays in one perfect package for all boaters.

Product Options
i50/i60 Wind, Speed, Depth Pack
sailboat

The perfect all-in-one pack for boaters

Convenience and accuracy come in one convenient package with the i50/i60 Wind, Speed, and Depth instrument pack. Containing the key readouts you need in one cost-effective bundle, boaters can benefit from user-friendly, well-designed instruments that are both powerful and simple-to-operate.

Every instrument in the i50/i60 pack is engineered for easy viewing. High-contrast LCDs, oversized digits, and red backlighting combine to deliver superior visibility under all conditions. Local and group dimming control makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all data displays. Raymarine instruments are the perfect combination of powerful performance, easy operation and rugged reliability.

i50/i60 Pack Key Features

  • Depth, Speed and Wind instruments and transducers included
  • Includes SeaTalkNG cabling kit for easy installation
  • I50 instruments offer oversized digits for easy viewing by day or night
  • I60 Wind with analog angle indicator and LCD speed readout
  • Red backlighting enhances night visibility
  • SeaTalkNG, NMEA2000 and SeaTalk network compatible
  • Compact footprint
  • Low power consumption
  • Surface mount or optional trunnion mount kit


i50/i60 Wind, Speed, Depth Pack

Full Integration with Raymarine Equipment

All i50 and i60 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. They are SeaTalkNG network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

i50/i60 Pack Models


i50 & i60 Wind, Speed, Depth Transducer Pack

SKU: E70153
i50 & i60 Wind, Speed, Depth Transducer Pack
  • i50 & i60 Wind, Speed, Depth Pack including 3 x instruments and 3 x transducers

i50/i60 Wind, Speed, Depth Pack Resources

Physical
Dimensions

Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

Connections

2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-13 °F to 131 °F)

Conformance
Standards

Europe 2004/108/EC

Power
Current (typical / max)

45-65 mA (display only) / 200 mA maximum (transducer connected)

Nominal supply voltage

12 V dc

Operating voltage range

10 V dc to 16 V dc

Power consumption

< 1 W typical (display only), 2.4 W maximum (transducer connected)

LEN (NMEA 2000 Load Equivalency Number)

4

What's in the box?


1

i50 Instrument display

2

Suncover (to match i70s, p70s, p70Rs, eS Series)

3

Front bezel (to match i70s, p70s, p70Rs, eS Series)

4

Gasket

5

Suncover (to match a, c, e Series)

6

Front bezel (to match a, c, e Series)

7

400mm (15.7 in) SeaTalkng spur cable

8

SeaTalkng blanking plug

9

Fixing screws x4

10

Documentation
