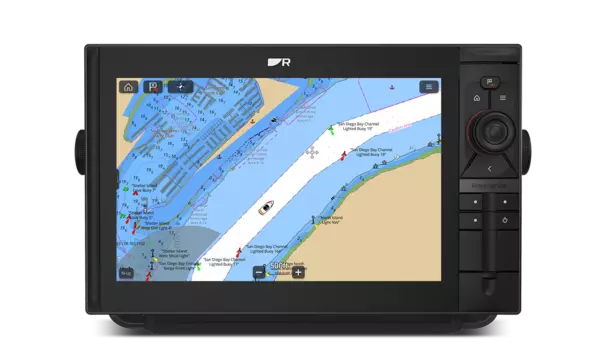

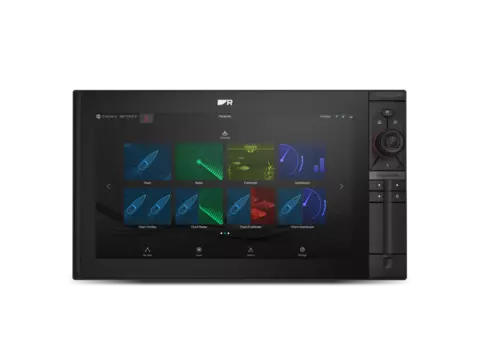

Axiom 2 Pro S

9, 12, and 16 inch HybridTouch chartplotters with single channel CHIRP sonar

Product Options
Axiom 2 Pro S


A Trusted Crew Member

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

Power That Pushes the Limits

Power That Pushes the Limits

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro 9 with HydroTough

Ready for All Conditions

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Confident Control

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

Axiom 2 Pro Keypads
Advanced Sailing Tools

Advanced Sailing Tools

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Axiom 2 Pro with Dynamic Laylines

Polars and Dynamic Laylines

Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Axiom 2 Pro with Race Start Line

Race Like a Pro

Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Axiom 2 Pro with Sailing Dashboard

Tactical Advantage

Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

One Display- Endless Possibilities

Axiom 2 Pro with LightHouse Charts

Discover More

Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.

Axiom 2 Pro with Doppler Radar

Upgrade your Awareness

Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Axiom 2 Pro with FLIR Thermal

Turn Night Into Day

FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.

Axiom 2 Pro with ClearCruise Augmented Reality

Make Smarter Decisions

Add a CAM300 and an AR200 sensor for ClearCruise augmented reality.  See AIS, waypoints, and chart objects overlaid on high-definition video.

Axiom 2 Pro with Mercury VesselView

Advanced Engine Integration

Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Axiom 2 Pro with Audio controls

Stream, Watch, and Listen

Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Smarter Boating

Axiom 2 Pro with YachtSense Link

Stay Connected

Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

Axiom 2 Pro streaming to a smartphone

Axiom on your Smartphone

Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

Axiom Pro

Do More with LightHouse Apps

Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.

Create a Powerful Navigation System

Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Axiom 2 Pro helm

Axiom 2 Pro S Models

Axiom 2 Pro S Models come in 9, 12 and 16-inch sizes.

Axiom 2 Pro 9 S

SKU: E70653
Axiom 2 Pro 9 S
  • 9" Display

  • Charts not included in this kit

Axiom 2 Pro 9 S North America

SKU: E70653-00-102
Axiom 2 Pro 9 S North America
  • 9" Display

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 9 S Western Europe

SKU: E70653-00-WEU
Axiom 2 Pro 9 S Western Europe
  • 9" Display

  • Includes preloaded LightHouse Charts Western Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 9 S Mediterranean

SKU: E70653-00-MED
Axiom 2 Pro 9 S Mediterranean
  • 9" Display

  • Includes preloaded LightHouse Charts Mediterranean chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 9 S Northern Europe

SKU: E70653-00-NEU
Axiom 2 Pro 9 S Northern Europe
  • 9" Display

  • Includes preloaded LightHouse Charts Northern Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 12 S

SKU: E70655
Axiom 2 Pro 12 S
  • 12" Display

  • Charts not included in this kit

Axiom 2 Pro 12 S North America

SKU: E70655-00-102
Axiom 2 Pro 12 S North America
  • 12" Display

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 12 SWestern Europe

SKU: E70655-00-WEU
Axiom 2 Pro 12 SWestern Europe
  • 12" Display

  • Includes preloaded LightHouse Charts Western Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 12 S Mediterranean

SKU: E70655-00-MED
Axiom 2 Pro 12 S Mediterranean
  • 12" Display

  • Includes preloaded LightHouse Charts Mediterranean chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 12 S Northern Europe

SKU: E70655-00-NEU
Axiom 2 Pro 12 S Northern Europe
  • 12" Display

  • Includes preloaded LightHouse Charts Northern Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 16 S

SKU: E70657
Axiom 2 Pro 16 S
  • 16" Display

  • Charts not included in this kit

Axiom 2 Pro 16 S North America

SKU: E70657-00-102
Axiom 2 Pro 16 S North America
  • 16" Display

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 16 S Western Europe

SKU: E70657-00-WEU
Axiom 2 Pro 16 S Western Europe
  • 16" Display

  • Includes preloaded LightHouse Charts Western Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 16 S Mediterranean

SKU: E70657-00-MED
Axiom 2 Pro 16 S Mediterranean
  • 16" Display

  • Includes preloaded LightHouse Charts Mediterranean chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro 16 S Northern Europe

SKU: E70657-00-NEU
Axiom 2 Pro 16 S Northern Europe
  • 16" Display

  • Includes preloaded LightHouse Charts Northern Europe chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom 2 Pro S Resources

Physical
Dimensions (Trunnion mounted)

Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (Surface/Flush mounted)

Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Connections
Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports

NMEA 2000 connection

DeviceNet connector

Wi-Fi

Multiband - 2.4GHz, and 5Ghz 802.11b/g/n

Bluetooth

v4.0

Accessory connection

USB Micro B

Internal storage

64GB Solid State

External storage

2 front mounted MicroSDXC card slots

Digital Video and Audio

HDMI Out Micro connector type D

Analog video connections

BNC Analog video input (on power cable)

Analog audio connections

RCA connectors via power cable

External GPS anternna

TNC connector

Power
Power consumption @ 12 V dc

Axiom Pro 9: 33.12 W

Axiom Pro 12: 29.88 W

Axiom Pro 16: 42.36 W

Power consumption @ 24 V dc

Axiom Pro 9: 30.96 W

Axiom Pro 12: 28.8 W

Axiom Pro 16: 40.8 W

Operating voltage range

8 V dc to 32 V dc

Nominal supply voltage

12 V dc / 24 V dc

Off current @ 12 V dc

11 mA (0.13 W)

Off current @ 24 V dc

18 mA (0.43 W)

LEN (NMEA 2000 Load Equivalency Number)

1

Current

5 A

Fuse rating

15 A

GPS (GNSS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, Galileo, GLONASS, Beidou

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes

Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

LCD
Size (diagonal)

Axiom 2 Pro 9: 9.0"

Axiom 2 Pro 12: 12.1"

Axiom 2 Pro 16: 15.6"

Ratio

Axiom 2 Pro 9: 16:9

Axiom 2 Pro 12: 16:9

Axiom 2 Pro 16: 16:10

Resolution

Axiom 2 Pro 9: 1280 x 720 HD

Axiom 2 Pro 12: 1280 x 800 WXGA

Axiom 2 Pro 16: 1920 x 1080 FHD

Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°

Type

IPS (In-Plane Switching)

Color depth

24-bit

Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2

Number of simultaneous touches

1 to 16

Sonar
Channels

CHIRP conical sonar

Depth range

0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers

What's in the box illustration
What's in the box?


1

Display unit

3

Suncover

4

Trunnion knobs (x 2)

4

Gasket

5

Trunnion bracket (Axiom 2 Pro 9 and 12 Only)

5

DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)

8

Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))

9

RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)

10

Mounting fixings x4

12

Power/Video/Audio cable 1.5 m (4.92 ft)
