B744V Through-Hull Transducer for Fishfinders

Bronze, 600W, Dual Frequency (50/200 kHz) for CP370 Sonar

Product Options
B744V Through-Hull Transducer for Fishfinders

B744V Overview

Operating at both 50 kHz and 200 kHz, the B744V TRIDUCER Multisensor provides you with depth, speed, and temperature in one thru-hull housing. This unit is ideal for all 600-Watt fishfinders and requires only a single hole in the hull.

The B744V’s patented valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage.

The innovative housing design allows the TRIDUCER Multisensor to be fully recessed into its custom High-Performance Fairing. The end result is a streamlined installation. At speeds above 30 knots (34 MPH), the B744V will produce clear images and solid bottom tracking!

B744V Models

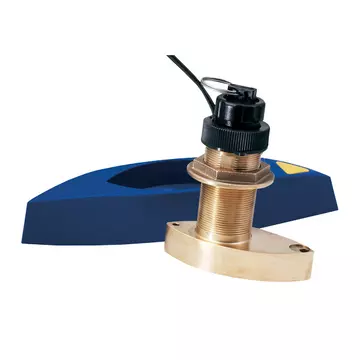

B744V Transducer SKU: A26043

B744V Transducer


  • Deadrise Angles: 0 - 24°

B744V Transducer w/ E66023 Fairing Block SKU: A66091

B744V Transducer w/ E66023 Fairing Block


  • Includes E66023 Fairing Block

  • Deadrise Angles: 0 - 24°

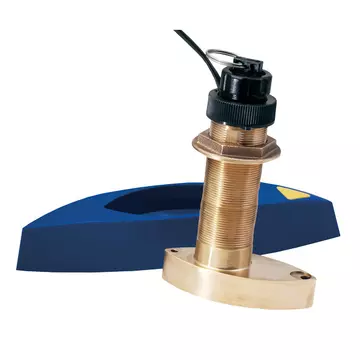

B744VL Long Stem Transducer SKU: A26044

B744VL Long Stem Transducer


  • Extra 2.5" of stem length for thicker hull installations

  • Deadrise Angles: 0 - 24°

B744VL Transducer w/ E66023 Fairing Block SKU: A66092

B744VL Transducer w/ E66023 Fairing Block


  • Extra 2.5" of stem length for thicker hull installations

  • Includes E66023 Fairing Block

  • Deadrise Angles: 0 - 24°

B744V Transducer Resources

General Specifications
Mount

Through-Hull

Material

Bronze

Power (RMS)

600W

Max Depth

1,200 Ft. (L) / 700 Ft. (H)

Frequency

50 / 200 kHz

Beam Width

45° / 12°

Records

Depth / Speed / Temperature

Hull Material

Fiberglass / Wood

Cable Length

33 Ft. / 10 M.
