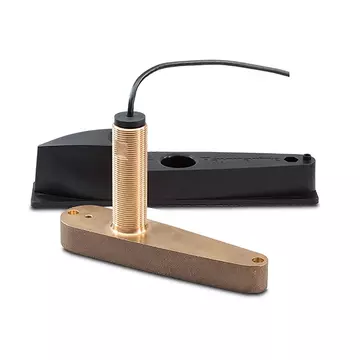

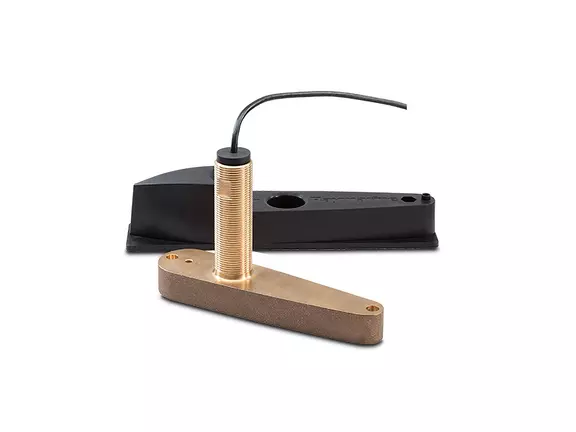

CPT-120 Through Hull Transducer

Bronze, CHIRP Fish finder / DownVision

Product Options
CPT-120 Through Hull Transducer

CPT-120 Overview

The CPT-120 through hull CHIRP DownVision transducer provides accurate depth and temperature reading functions to compatible Raymarine CP100, a68 and a78 modules.

CPT-120 Models


CPT-120 Through Hull Transducer SKU: A80350

CPT-120 Through Hull Transducer


CPT-120 Transducer Resources

General Specifications
Material

Bronze

Max Depth

DV:600 / FF: 900

Frequency

CHIRP Fish finder / DownVision

Beam Width

25 / 60°

Records

Depth / Temperature

Hull Material

Fiberglass / Metal

Cable Length

30 Ft. / 10 M.

Deadrise Angles

0 - 25°

Sonar
Beam coverage

Sonar - conical beam, DownVision - Wide (port / starboard) and thin (fore / aft) fan beam.

Channels

2 x CHIRP (1 x traditional sonar and 1 x DownVision)

Depth range

0.6 M (2 ft) to 183 m (600 ft). Depending on water conditions, the Sonar channel may be able to achieve increased depth range over the DownVision channel.

Environmental
Waterproof rating

IPx6, IPx7

Storage temperature

-20 °C to + 70 °C (23 °F to 158 °F)

Operating temperature range

0 °C to + 40 °C (32 °F to 104 °F)

Conformance
Standards

EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2

Physical
Length

210.8 mm (8.3 in)

Height

131.8 mm (5.2 in) Max

Cable length

10 m (32.8 ft)
