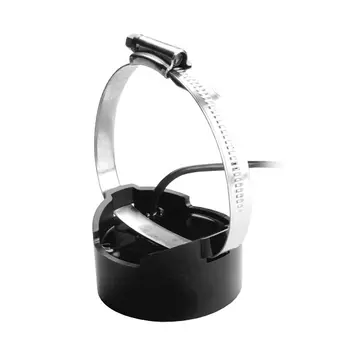

P74 In-Hull / Trolling Motor Transducer

Urethane, 600W, Dual Frequency (50/200 kHz) for CP370 Sonar

Product Options
P74 In-Hull / Trolling Motor Transducer

P74 Overview

The versatile P74 can be mounted in-hull or on a trolling motor via the provided band clamp. In-hull mounting is not recommended with cored hulls or fiberglass thicker than 5/8".

The P74 comes fitted with a Raymarine 8-pin "DSM-style" connector that is directly compatible with the CP370 sonar module and legacy CP300, DSM300, DSM30 and DSM250 modules. P74 can be adapted to work with other systems using optional transducer adapter cables, sold separately.


P74 Models


P74 In-Hull Transducer w/ CP370 Connector 9M Cable

SKU: A80567
P74 In-Hull Transducer w/ CP370 Connector 9M Cable

P74 Transducer Resources

General Specifications
Mount

In-Hull / Trolling Motor

Material

Urethane

Power (RMS)

600W

Max Depth

1,200 Ft. (L) / 700 Ft. (H)

Frequency

50 / 200 kHz

Beam Width

45° / 11°

Records

Depth / Temperature

Hull Material

Fiberglass

Cable Length

25 Ft. / 7.5 M.

Deadrise Angles

0 - 12°
