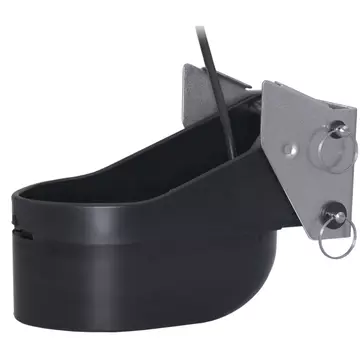

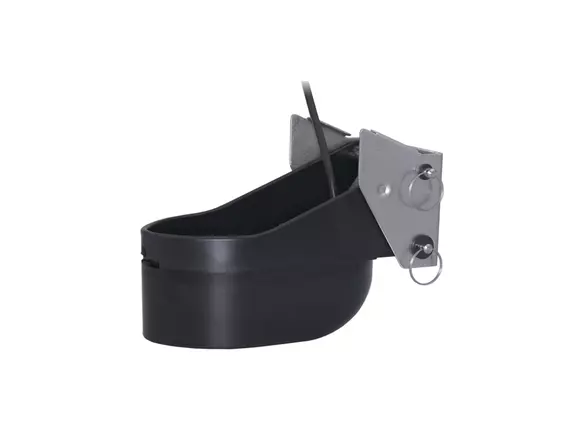

TM265 Transom Mount Transducer

Urethane, 1kW, for CHIRP sonar modules and Axiom Pro series

Product Options
TM265 Transom Mount Transducer

TM265 Overview

The TM265 brings CHIRP technology into a transom transducer. With up to 103kHz of CHIRP range and 8 internal ceramics this transducer has the ability to provide great target separation in both shallow and deep water.

TM265 comes in either a Low/High (LH) configuration or a Low/Medium (LM) configuration.

The medium element will provide better shallow water coverage under the vessel, while the high element will provide better shallow water resolution.

Use the low element for deep-water detection of bottom and fish as deep as 3,000 meters (10,000 feet.)

The TM265 is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM,  RVX-1000, RVM-1600, CP470, CP570 and legacy CHIRP sonar modules.

TM265 Models


TM265LH Low-High Transducer SKU: A80013

TM265LH Low-High Transducer


  • Max Depth (Ft): 3,000 (L) / 1,000 (H)

  • Frequency (KHz): 42-65 (L) / 130-210 (H)

  • Beam Width: 25° / 16° (L) / 10° / 6° (H)

TM265LM Low-Medium Transducer SKU: A80041

TM265LM Low-Medium Transducer


  • Max Depth (Ft): 3,000 (L) / 1,500 (M)

  • Frequency (KHz): 42-65 (L) / 85-135 (M)

  • Beam Width: 25° / 16° (L) / 16° / 11° (M)

TM265 Transducer Resources

General Specifications
Mount

Transom

Material

Urethane

Power (RMS)

1kW

Records

Depth / Temperature

Hull Material

Fiberglass / Wood / Metal

Cable Length

33 Ft. / 10 M.

Deadrise Angles

0 - 25°
