FLIR M300C

High definition, marine camera with active gyro stabilization, 30x optical zoom and exceptional low light performance.

Product Options
FLIR M300C
Lowlight conditions on a police boat

HD Visibility When It's Needed Most

Combining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications.

Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to continuously monitor targets or hazards over long distances.

Exceptional low light performance from the M300C gives captains the ability to see clearly in the middle of the night when ambient shore light is visible.

High Definition Navigation

For daytime and night time with a low light HD visible imaging sensor and long-range zoom offering enhanced target identification.

A Steady View in Rough Seas - Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Seamless Integration - Exceptional connectivity with navigation and security systems.

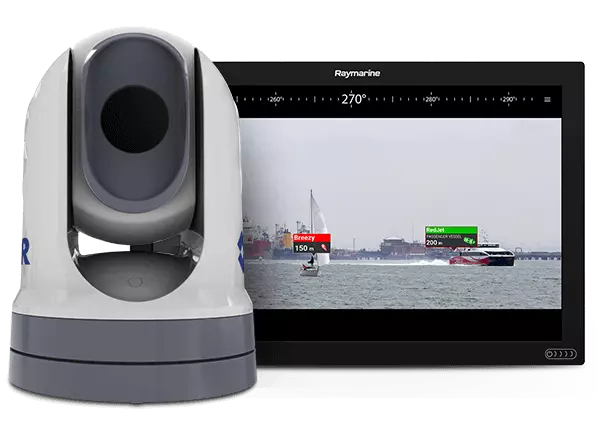

FLIR M300C and ClearCruise Augmented Reality

ClearCruise™ Augmented Reality

Combining the M300C with Raymarine Axiom® and the AR200 module offers next-level performance from Raymarine ClearCruise™ Augmented Reality enhancements.

ClearCruise AR makes navigation even safer by presenting AIS targets, chart objects, and waypoints on top of high definition video from the M300C.

The FLIR M300 Series Family Explained

FLIR M300C Models


FLIR M300C Visible Camera SKU: E70605

FLIR M300C Visible Camera


FLIR M300C Resources

Visible Camera
Lines of Resolution

Up to 1920 x 1080 @ 30fps

Minimum Illumination

0.1 lux (ICR off, slow shutter off, high sensitivity off) / 0.006 lux (ICR on, slow shutter off, high sensitivity off)

Visible E-Zoom

12x

Visible Field of View

Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV

Visible Focal Length

129 mm to 4.3 mm

Zoom

30× Optical Zoom

System
Analog Video Connector Type

BNC

Analog Video Output

NTSC/PAL User Settable

ClearCruise AR Analytics

Yes, with Raymarine Axiom and AR200 module

Current

Peak 10.0 A

Firefighter Mode

No

Gyro Stabilized

Yes

HD-SDI Lossless Video Output

Yes

Network Video Output

Two, Independent H.264/MJPEG Network Video Streams

ONVIF Conformance

Profile S

Operating Voltage Range

-10% to +30% of Nominal Supply Range

Pan-Tilt Adjustment Range

360° Continuous Pan, ± 90° Tilt

Power Consumption

41 W (typical) 56 W (max)

Environmental
Automatic Window Defrost

Standard at Power-Up

EMI

IEC60945

Lightning Protection

Near Strike at 2kV

Operating Temperature Range

-13°F to +131°F (-25°C to +55°C)

Salt Mist

IEC60945

Sand & Dust Ingress

Mil-Std-810E or IP6X

Shock

15 g vertical, 9 g horizontal

Storage Temperature Range

-22°F to +158°F (-30°C to +70°C)

Vibration

IEC60945

Water Ingress

IPX6 (heavy seas, power jets of water)

Wind

100 knots (115.2 MPH)

Physical
Size

Camera: 8.7” (222mm) x 12.9” (328mm) / Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm)

Weight

Camera: 13.9lbs (6.3kg) / Camera with Top-Down Riser: 14.9lbs (6.8kg)

What's in the box?


1

Thermal camera

2

Thermal camera base-seal

3

Thermal camera gasket

4

RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)

5

Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)

6

Right-angled HD-SDI video cable (with BNC connectors) 3 m (9.8 ft.)

7

Right-angled power/NMEA 0183/video cable 3 m (9.8 ft.)

8

Mounting riser

9

Fixings: 3x M6 dome nuts, 3x M6 threaded studs, 3x M6 spring washers, 3x M6 nyloc nuts, and 2x M6 flat washers

10

Self-adhesive decals (for ball-down mounting only)

11

Documentation
