i60 Close Hauled Wind

The i60 Close Hauled Wind Display provides a magnified 20º - 60º display making it the perfect instrument when a single degree can make all the difference whether racing or fast-cruising.

Product Options
i60 Close Hauled Wind
Sailboat

Perfect for racing or fast-cruising

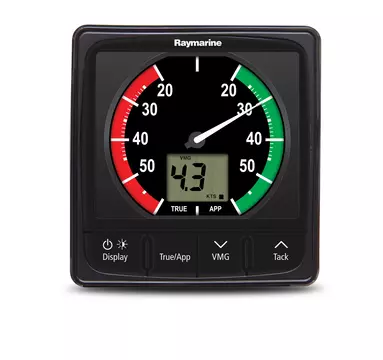

The i60 Close Hauled Wind instrument display boasts a magnified 20°-to-60°-degree wind angle display, making it the ideal instrument when just one degree can make an enormous difference while racing or fast-cruising. The i60 Close Hauled Wind instrument is a repeater instrument and receives its wind-angle instrument from a networked i60 Wind instrument, or i-TC5 instrument and masthead transducer.

The i60 Close Hauled Wind instrument is engineered for easy viewing, by day or night. Its high-contrast LCD and red backlighting combine to deliver superior visibility under all conditions. i60 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i60 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability.

i60 Close Hauled Wind Key Features

  • Analog needle display reports a magnified view of relative wind angle from 20° to 60°
  • High contrast LCD for wind speed, Beaufort, max wind, VMG, and tack angle reporting
  • Red backlighting enhances night visibility
  • SeaTalkNG, NMEA2000 and SeaTalk network compatible
  • Receives wind data from a networked standard Wind instrument and transducer
  • Compact footprint
  • Low power consumption
  • Surface mount or optional trunnion mount kit


i60 group

Full Integration with Raymarine Equipment

All i60 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i60 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i60 instruments are SeaTalkNG network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

i60 Close Hauled Wind Models


i60 Close Hauled Wind Display (Analogue) SKU: E70062

i60 Close Hauled Wind Display (Analogue)


  • i60 Close Hauled Wind Display (Analogue) only

i60 Close Hauled Wind Resources

Physical
Dimensions

Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

Connections

2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-13 °F to 131 °F)

Conformance
Standards

Europe 2004/108/EC

Power
Current (typical / max)

45-65 mA (display only) / 200 mA maximum (transducer connected)

Nominal supply voltage

12 V dc

Operating voltage range

10 V dc to 16 V dc

Power consumption

< 1 W typical (display only), 2.4 W maximum (transducer connected)

LEN (NMEA 2000 Load Equivalency Number)

4

What's in the box?


1

i60 Instrument display

2

Suncover (to match i70s, p70s, p70Rs, eS Series)

3

Front bezel (to match i70s, p70s, p70Rs, eS Series)

4

Gasket

5

Suncover (to match a, c, e Series)

6

Front bezel (to match a, c, e Series)

7

400mm (15.7 in) SeaTalkng spur cable

8

SeaTalkng blanking plug

9

Fixing screws x4

10

Documentation
