EV-100 Tiller Pilot

Tiller drive autopilot for small sailboats

Product Options
EV-100 Tiller Pilot
Tiller steered sail boat

Autopilot for Tiller Steered Sailboats

The EV-100 Tiller Pilot is a complete autopilot solution for tiller-steered sailboats. Designed for DIY installations, the EV-100 Tiller Pilot's externally mounted drive mounts in the cockpit, attached to the tiller. The EV-100 Tiller Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Tiller Pilot systems are available with a p70s autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for complete autopilot control.

EV-100 Tiller Pilot Key Features

  • Rated for tiller-steered sailboats up to 13,200 lbs (6000kg) displacement
    • Tech Tip:  Remember to always take your vessel's fully laden displacement weight into account (often 20% above the designed displacement).
  • Designed for cockpit installations.
  • Tiller drive unit can be easily removed and stored.
  • SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
  • Requires no complicated setup or autopilot calibration.
  • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

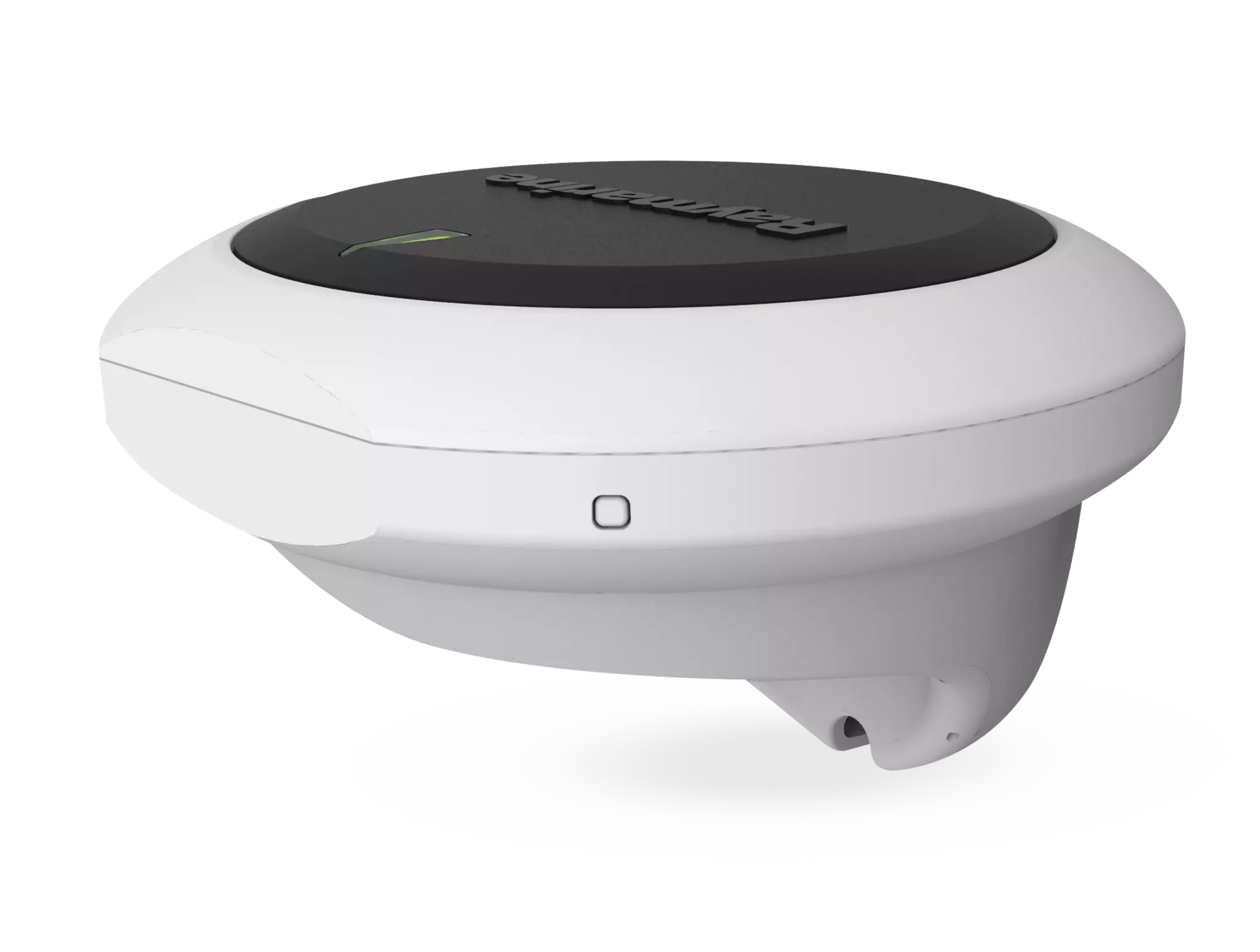

EV-1 intelligent sensor core

EV-100 Tiller Pilot Models

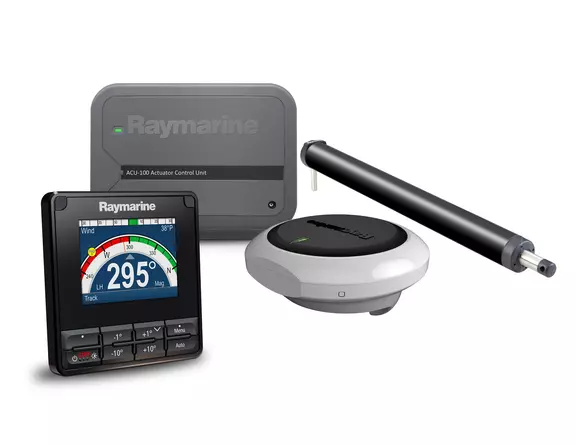

Evolution Tiller Pilot Pack SKU: T70153

Evolution Tiller Pilot Pack


  • Includes p70s control head

  • Includes ACU-100

  • Includes tiller drive

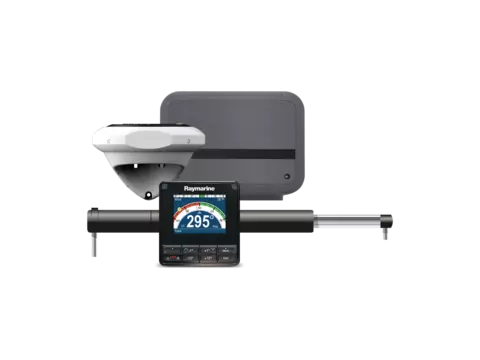

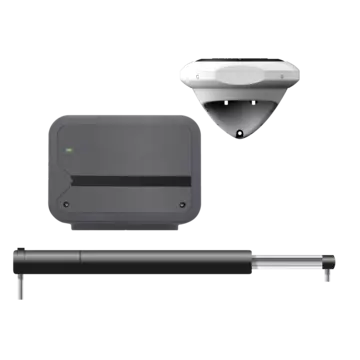

EV-100 Tiller Pilot without control head SKU: T70249

EV-100 Tiller Pilot without control head


  • Control head sold separately

  • Includes ACU-100

  • Includes tiller drive

EV-100 Tiller Resources

Output
Drive current output

Maximum continuous 7 A at supply voltage

Physical
Dimensions

Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)

Weight

0.6 kg (1.32 lbs)

Environmental
Relative humidity

Max. 93%

Waterproof rating

Connector panel: IPx2, Drive electronics: IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)

Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

Power
Power consumption (standby)

300 mA (12 V)

Nominal supply voltage

12 V dc

Operating voltage range

10.8 V dc to 15.6 V dc

LEN (NMEA 2000 Load Equivalency Number)

1

What's in the box?


1

ACU unit

2

Documentation

3

Screws (pan head type)

4

SeaTalkng spur to bare wires cable 1 m (3.3 ft)
