Axiom Pro S

9, 12, and 16 inch HybridTouch chartplotters with single channel CHIRP sonar

Product Options

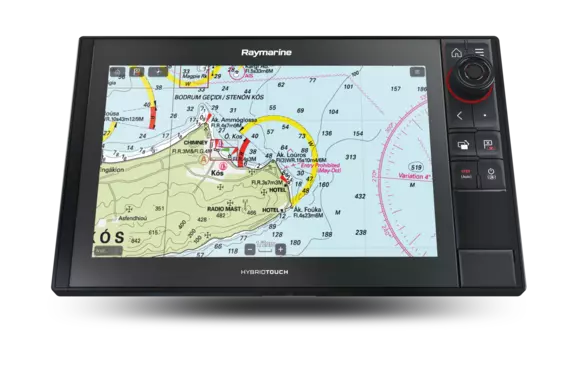

Axiom Pro S
Navigate like a pro

Navigate like a pro

The Axiom Pro S line of networked chartplotter displays offers premium all-in-one performance with blazing fast quad-core processing and the simplicity of the LightHouse operating system.

Optically bonded IPS displays bring charts, radar, and navigation data to life in all lighting conditions, while Raymarine HybridTouchTM offers the ease of touch screen and the confidence of keypad control when seas are rough. Built-in high CHIRP sonar provides reliable depth and bottom imaging for worry-free cruising.

Expand Axiom Pro S into a multifunction powerhouse with additional Axiom displays, Evolution autopilot, solid state radar, and FLIR thermal night vision cameras.

Axiom Pro S Key Features

Powerful Chartplotting

Navigate, pan, and zoom effortlessly through LightHouse, Navionics, or C-MAP charts with Axiom Pro’s fast quad-core processor.

Cruise and Sail Smarter

With dynamic laylines overlays, polar performance data, and graphical sailing dashboard displays.

Trusted by the Pros

Axiom Pro displays incorporate the same chartplotting, AIS, and radar technologies trusted by the United States Coast Guard.

ClearCruise Augmented Reality

Upgrade to ClearCruise AR and make smarter navigation decisions with AIS targets and chart objects overlaid on high-definition video.

Advanced Radar Navigation

Axiom Pro is compatible with Raymarine's Cyclone and Quantum solid-state radars for all-weather collision avoidance and radar/chart overlay.

Easy to Expand

Standard NMEA0183 and NMEA2000 ports and two RayNet Ethernet ports for additional displays, radars, FLIR, and video monitoring cameras.

Intuitive Control

Intuitive Control

HybridTouch™ - Your choice of simple tablet like touch screen interaction or confident keypad control in rough seas.

LightHouse OS - Fast, fluid and easy to learn. The LightHouse operating system interface is uncluttered and easy to personalize for your style of boating.

Custom Key - Get instant access to your favorite function with Axiom Pro’s user-programmable Custom Key.

Axiom Pro S Models

Axiom Pro S Models come in 9, 12 and 16-inch sizes.

Axiom Pro 16 S

SKU: E70483
Axiom Pro 16 S
  • 16" Display

  • CHIRP Sonar/Depth Finder Built In

Axiom Pro 16 S | LightHouse Charts North America

SKU: E70483-00-102
Axiom Pro 16 S | LightHouse Charts North America
  • 16" Display

  • CHIRP Sonar/Depth Finder Built In

  • Includes preloaded LightHouse Charts North America chart card

  • Includes 1 Free year of LightHouse Charts Premium Subscription

Axiom Pro S Resources

Physical
Dimensions (Trunnion mounted)

Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)

Dimensions (Surface/Flush mounted)

Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)

Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)

Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)

Accessory connection

USB Micro B

Ethernet connection

2 RayNet (10/100/1,000 Mbits/s) ports

NMEA 0183 connection

Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate

External storage

2 front mounted MicroSDXC card slots

NMEA 2000 connection

DeviceNet connector

Analog video connections

BNC Analog video input (on power cable)

Wireless connections

Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n

Internal storage

16GB Solid State

Transducer connection

25 pin RealVision type connector (requires adaptor cable)

LCD
Size (diagonal)

Axiom Pro 9: 9.0"

Axiom Pro 12: 12.1"

Axiom Pro 16: 15.6"

Ratio

Axiom Pro 9: 16:9

Axiom Pro 12: 16:9

Axiom Pro 16: 16:10

Resolution

Axiom 2 Pro 9: 1280 x 720 HD

Axiom 2 Pro 12: 1280 x 800 WXGA

Axiom 2 Pro 16: 1920 x 1080 FHD

Viewing angle

Top 88° / Bottom 88° / Left 88° / Right 88°

Type

IPS (In-Plane Switching)

Color depth

24-bit

Illumination

Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2

Number of simultaneous touches

1 to 16

Power
Power consumption @ 12 V dc

Axiom Pro 9: 24.96 W

Axiom Pro 12: 21.12 W

Axiom Pro 16: 31.44 W

Power consumption @ 24 V dc

Axiom Pro 9: 25.2 W

Axiom Pro 12: 22.56 W

Axiom Pro 16: 31.68 W

Operating voltage range

8 V dc to 32 V dc

Nominal supply voltage

12 V dc / 24 V dc

Off current @ 12 V dc

11 mA (0.13 W)

Off current @ 24 V dc

18 mA (0.43 W)

LEN (NMEA 2000 Load Equivalency Number)

1

Current

5 A

Sonar
Channels

CHIRP conical sonar

Depth range

0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Transducer connection

25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers

Environmental
Operating temperature

-25°C to +55°C (-13°F to 131°F)

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Relative humidity

Up to 93% @ 40°C (104°F)

Waterproof rating

IPx6, IPx7

GNSS (GPS)
Position Accuracy

Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time

Geodetic Datum

WGS-84 (alternatives can be selected on the MFD)

Satellite Differential Type (SBAS)

WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)

Channels

Track up to 28 satellites simultaneously

Antenna

Internal - Ceramic chip mounted near top of unit

GNSS compatibility

GPS, Galileo, GLONASS, Beidou

Almanac Update

Automatic

Signal Acquisition

Automatic

Receiver IC Sensitivity

165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)

Operating frequency

1574 MHz to 1605 MHz

Refresh rate

10 Hz (10 times per second)

Time to first fix from cold start

< 2 minutes
