200WX Weather Station

Multisensor weather station system for Axiom chartplotters suitable for powerboats, sailing and commercial use.

Product Options

Real-time weather information

The Airmar 200WX WeatherStation is innovative all-in-one marine sensor, compatible with Raymarine’s family of Axiom chartplotters. The Airmar 200WX offers the following sensor capabilities:

Ultrasonic wind speed measurement with true wind speed and direction
Accurate barometric pressure measurement
Air temperature sensor
10 Hz GPS position, speed over ground, and course over ground
Solid-state compass with dynamic stabilization
Three-axis rate gyro supplies rate-of–turn data
Three-axis accelerometer for pitch and roll data
IPX6 rated for water-ingress protection
Data output via a single cable
NMEA 2000 interface

200WX Models

Suitable for sailing, powerboats and commercial marine applications the 200WX is an all-in-one weather monitoring system.

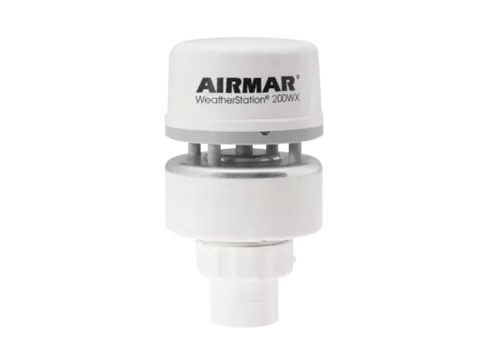

200WX Weather Station

SKU: A80755

Includes 6 meter NMEA 2000 cable

Find a Dealer

200WX Resources

General
GPS Position Accuracy	3 m (10’) CEP
Operating Temperature Range	-25 to 55°C (-13 to 131°F)
Weight	300 grams (0.7 lb)
Mounting-thread Size, Base M39	Adapter on cable is standard 1”-14 UNS (3/4” NPT optional)
Certifications and Standards	CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982

Wind Speed
Range	0 to 40 m/s (0 to 89 MPH)
Accuracy	5% at 10 m/s at 4 angles
Resolution	0.1 m/s
Calculations	User configurable damping

Wind Direction
Range	0° to 359.9°
Accuracy	±3° at 10 m/s
Resolution	0.1°
Calculations	User configurable damping

Air Temperature
Range	-40° to 80°C (-40 to 176°F)
Accuracy	±1.1°C at 20°C
Resolution	0.1°C

Relative Humidity (Optional)
Range	0 to 100% RH
Accuracy	±5% RH at 0 to 90% RH at 20°C
Resolution	0.1% RH

Barometric Pressure
Range	300 to 1100 hPa
Accuracy	±0.5 hPa at 25°C (or better)
Resolution	0.1 hPa

Three-axis Compass
Range	0 to 359.9°
Accuracy	1° static heading accuracy; 2° dynamic heading accuracy
Resolution	0.1°

Pitch and Roll
Measurement Type	MEMS
Range	50°
Accuracy	±1° in range of ±30°
Resolution	0.1°

Operating Voltage
Supply Voltage	9 VDC to 40 VDC
Supply Current (at 12 VDC)	<75 mA (<0.9 W)
NMEA 2000® Load Equivalency Number (LEN)	2

Communications
Available Hardware Interfaces	Serial RS232, Serial RS422, CAN
Available Protocols	NMEA 0183, NMEA 2000
Serial Data Transmission Code	ASCII
Serial Output Rate	1 Hz typical. User selectable. 10 Hz max recommended
