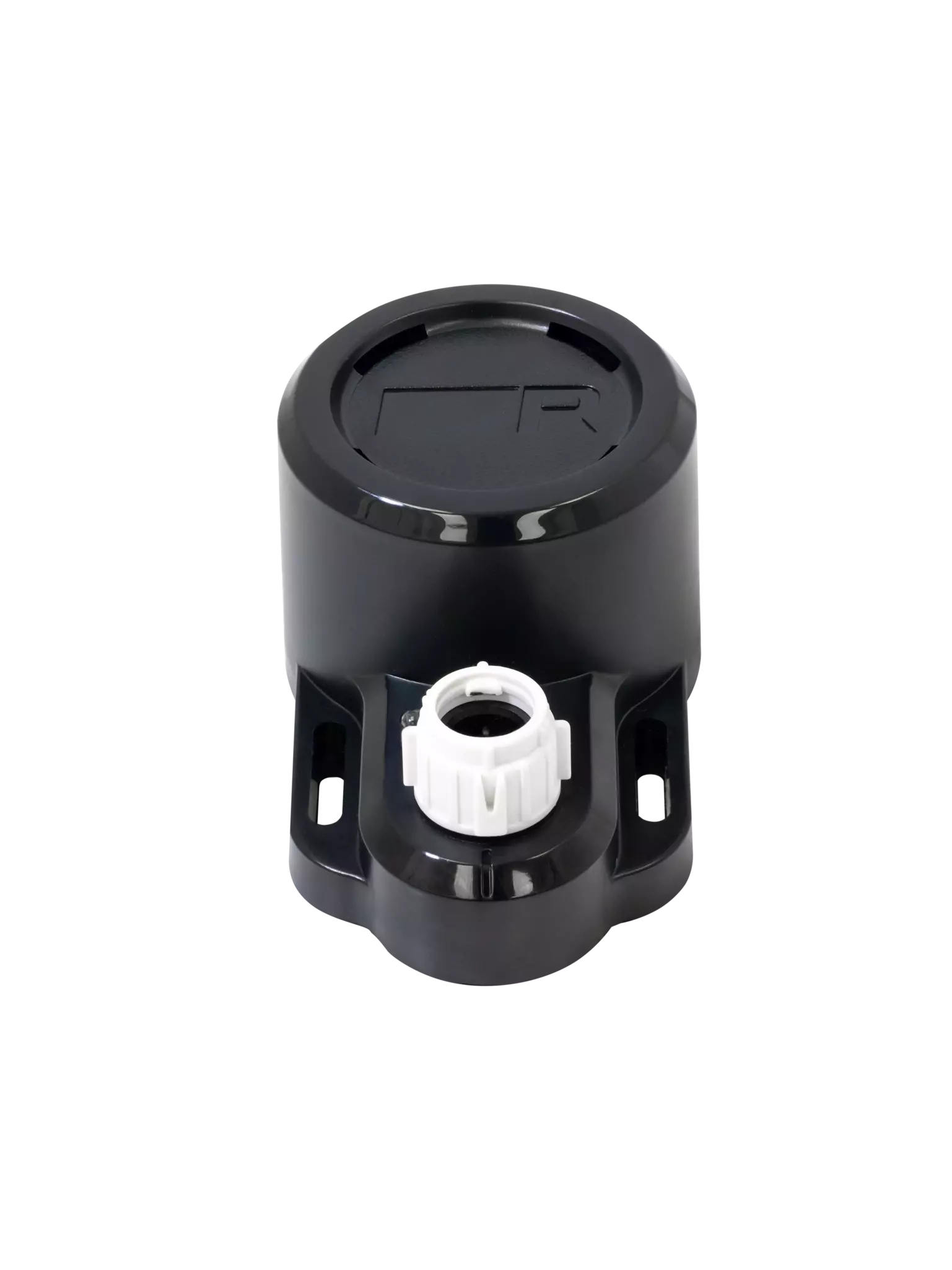

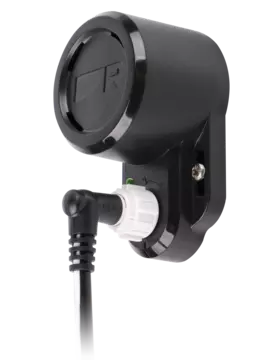

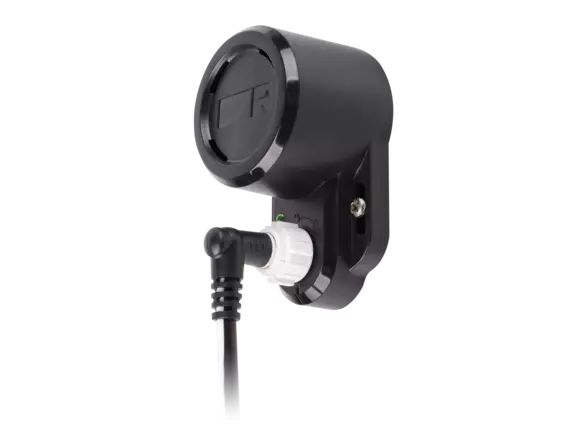

Waterproof, high volume (>85dB(A)), remote-mount alarm buzzer for SeaTalk NG and NMEA 2000 network alarms. The buzzer connects to and is powered by the SeaTalk NG backbone. Repeats alarm warnings from i70 and i70s instruments, AIS receivers, autopilots, chartplotters and multifunction displays including eS, gS and all Axiom-series units.
The SeaTalkng ® Alarm buzzer accessory is a remote SeaTalkng alarm repeater designed to complement existing and new chartplotter, instrument, and autopilot systems. The buzzer uses an audible alarm (> 85dB(A)) to repeat SeaTalkng and NMEA2000 alarms generated by devices on the SeaTalkng network. The buzzer connects to a spur connection on your SeaTalkng bus (backbone or 5-way connector), which also supplies the power for the buzzer.
Note: A compatible chartplotter or i70 / i70s instrument is required to relay NMEA2000 alarms to the buzzer.
The SeaTalkng alarm buzzer is compatible with the following chartplotters and multifunction displays
Chartplotters require LightHouse 3 software release 3.7 or greater for full buzzer compatibility. Lighthouse 2 and Lighthouse 3 software release 3.6 or before are not fully supported by the buzzer.

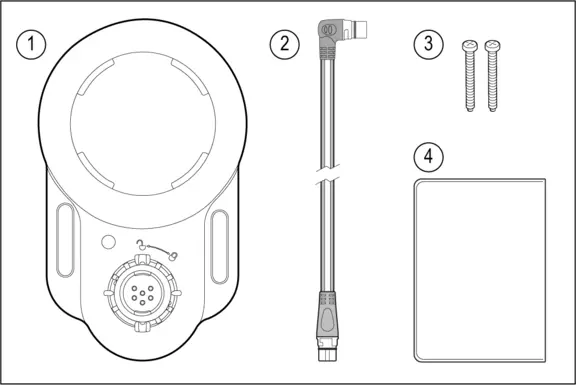

SeaTalkNG Auxiliary Alarm with 1m SeaTalkNG Spur Cable SKU: A80614
|Supported connection protocols||
SeaTalkng / NMEA 2000 (via DeviceNet adaptor)
-30 °C to +70 °C (-22 °F to 158 °F)
-20 °C to +55 °C (-4 °F to 131 °F)
|Operating voltage range||
9 V dc to 16 V dc (protected up to 32 V dc)
25 mA at nominal supply voltage
|Nominal supply voltage||
12 V dc (Supplied by SeaTalkng)
|LEN (NMEA 2000 Load Equivalency Number)||
|Sound pressure level (SPL) of audible alarm||
> 85 dB(A) at a distance of 1 meter
Right-angle SeaTalkng spur cable 1 m (3.28 ft)
