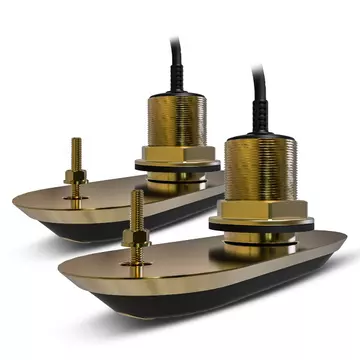

Enter nowRealVision Bronze Through Hull Transducers & Pairs for Axiom+ RV, Axiom Pro & RVX-1000 sonars

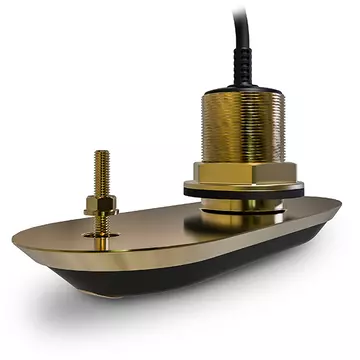

Raymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings.
The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.
$1,454.99 (USD)
0° Offset
Bronze
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
$2,499.99 (USD)
12° Offset
Bronze
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
2-Meter Y-Cable
$1,144.99 (USD)
12° Offset
Bronze
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
$1,144.99 (USD)
12° Offset
Bronze
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
$2,499.99 (USD)
20° Offset
Bronze
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
2-Meter Y-Cable
$1,144.99 (USD)
20° Offset
Bronze
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
$1,144.99 (USD)
20° Offset
Bronze
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
| Physical | |
|---|---|
| Cable length | RV-200: 8 m (26.2 ft), RV-2xxP/S: 2 m (6.5 ft) |
| Dimensions | Length: 308.00 mm (12.13 in), Width: 105.30 mm, Height: 166.00 mm (6.65 in) including cable bend radius |
| Weight | 2.588 kg (5.7 lb) |
| Environmental | |
|---|---|
| Waterproof rating | IPx6 (surfaces exterior to hull only), IPx7, IPx8 |
| Storage temperature range | -20° C (23° F) to + 70° C (158° F) |
| Operating temperature range | -2° C (28.4° F) to + 55° C (131° F) |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| RealVision 3D sonar | |
|---|---|
| Range | CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft), DownVision = 0.6 M (2 ft) to 183 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft) |
| Channels | 1 x CHIRP sonar, 1 x DownVision, 1 x SideVision, 1 x RealVision 3D |
| 1 | Documentation |
| 2 | Locking collar kit (for transducer cable connector), consisting of: 2 x Split rings (includes spare), 1 x O-ring, 1 x Locking collar, 1 x Split ring fitting tool |
| 3 | Bronze hull nut |
| 4 | Cable protector |
| 5 | Nut for Anti-rotation bolt |
| 6 | Large internal isolator sleeve |
| 7 | Washer for Anti-rotation bolt |
| 8 | Rubber washer |
| 9 | Transducer (including cable) |
| 10 | Anti-rotation bolt |
| 11 | Protective cap for Anti-rotation bolt |
