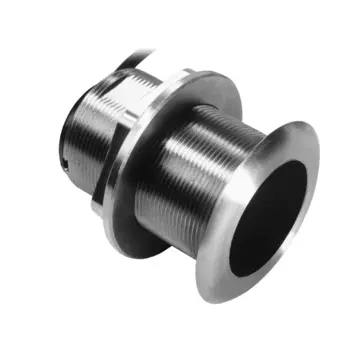

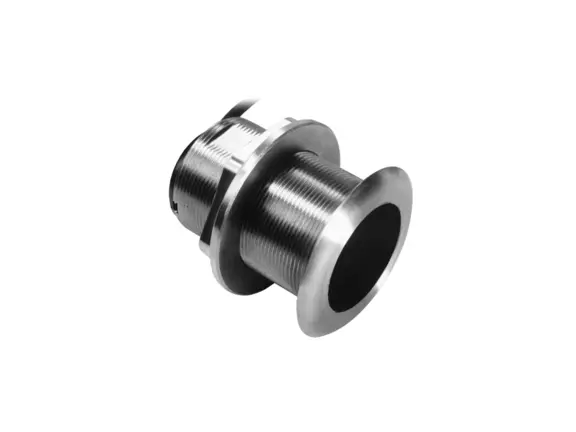

SS60 Through-Hull Transducer

Stainless Steel, 600W, Dual Frequency (50/200 kHz) with Tilted Element Technology for CP370 Sonar

Product Options
SS60 Through-Hull Transducer

SS60 Overview

The SS60 is a stainless steel, dual-frequency (50/200 kHz) through hull transducer with tilted element technology that compensates for the boat's hull deadrise, eliminating the need for a fairing block. The transducer mounts flush to the boat's hull, reducing drag and improving water flow. Built-in deadrise compensation keeps the main focus of the sonar beam pointing straight down, resulting in strong echo returns and accurate depth readings. A built-in water temperature sensor provides reliable sea water temperature readings.

The SS60 is ideal for inshore or coastal fishing in shallow to medium depths. Its combination of frequencies and beams makes it ideal for slow trolling, structure fishing, and drifting. This is also an excellent choice for deep-water lake fishing. The stainless steel through-hull fitting is ideal for most metal, wood, or fiberglass hulls.

The SS60 is fitted with a Raymarine 8-pin "DSM-style" connector that is directly compatible with the CP370 sonar module and legacy CP300, DSM300, DSM30, and DSM250 modules. SS60 can be adapted to work with other systems using optional transducer adapter cables, sold separately.

SS60 Models


SS60 0° Tilted Element Transducer SKU: A80568

SS60 0° Tilted Element Transducer


  • Deadrise Angles: 0 - 7°

  • 0° Offset

SS60 12° Tilted Element Transducer SKU: A80569

SS60 12° Tilted Element Transducer


  • Deadrise Angles: 8 - 15°

  • 12° Offset

SS60 20° Tilted Element Transducer SKU: A80570

SS60 20° Tilted Element Transducer


  • Deadrise Angles: 16 - 24°

  • 20° Offset

SS60 Transducer Resources

General Specifications
Mount

Through-Hull

Material

Stainless Steel

Power (RMS)

600W

Max Depth

1,200 Ft. (L) / 700 Ft. (H)

Frequency

50 / 200 kHz

Beam Width

45° / 12°

Records

Depth / Temperature

Hull Material

Fiberglass / Wood

Cable Length

33 Ft. / 10 M.
