CAM300

Mini day/night IP camera with an ultra-wide field of view designed for Raymarine Axiom chartplotters.

Product Options
CAM300
Axiom 2 Pro with CAM300 and ClearCruise Augmented Reality

CRYSTAL CLEAR, ULTRA-WIDE FIELD OF VIEW

Time of day isn’t an issue when you can spot obstacles and opportunities in high definition no matter the light conditions.

The CAM300 mini day/night IP camera is a wide field-of-view visible camera designed for Raymarine Axiom chartplotters. Equipped with an HD video sensor, the CAM300 transforms Axiom® into a powerful onboard video observation system. Use the CAM300 to monitor blind spots, check in on the crew, or watch and record all fishing action from the helm. Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise™ Augmented Reality to overlay AIS targets, waypoints and chart objects on the Axiom video display.

CAM300 Key Features

  • Crystal clear HD video imagery
  • View up to 4 CAM300 video streams simultaneously on a single Axiom display
  • 3MP CMOS sensor delivers up to 1080p resolution
  • Built-in infrared emitters for excellent near-field low-light visibility up to 33 ft (10 meters)
  • Ultra-compact size blends seamlessly with your vessel
  • Image flip and invert functions for ball-up/ball-down installation and reverse video system applications
  • Flexible mounting solutions as the entire camera ball rotates in the housing
  • Easy to install with either a direct 12-volt connection or single cable Power over Ethernet (POE)
  • Rugged IP66 enclosure for below- and above-deck marine installations
  • Navigate smarter with ClearCruise™ Augmented Reality and the optional AR200 sensor
  • ONVIF Profile S compatible for integration with third-party security systems

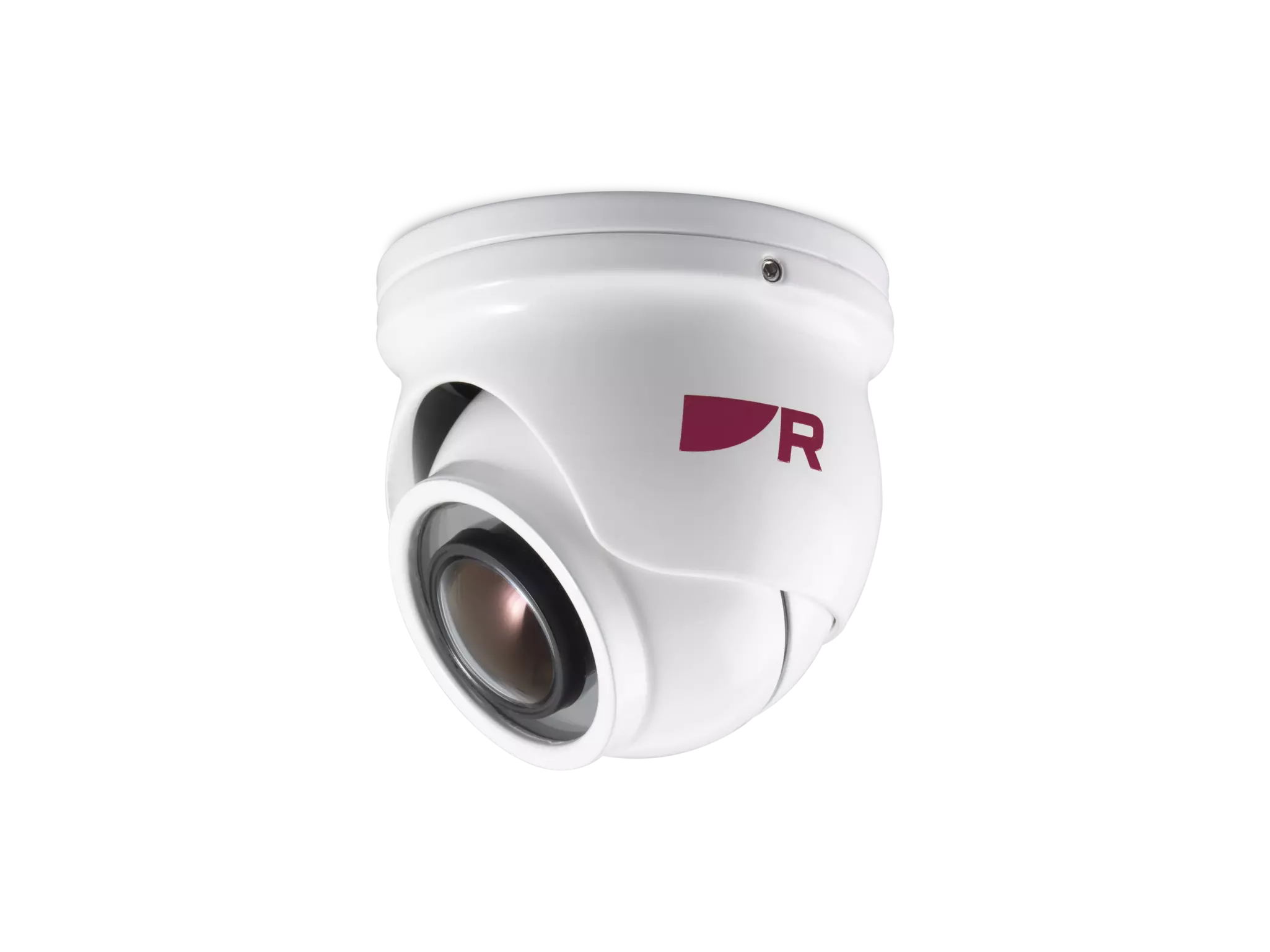

CAM300 marine camera

CAM300 Visible Camera


CAM300

SKU: E70660
CAM300

  • Rugged IP66 enclosure

  • Low light visibility up to 33ft

  • Compact size at just over 2 inches (58mm) tall

  • HD Imagery

  • Flexible power options

Find a Dealer

CAM300 Resources

Conformance
Product markings

UKCA, RoHS, CE, Australian RCM C-Tick
Standards

RoHS II 2011/65/EU, Japan / China: ABS/CCS IEC 60945:2002, Australia and New Zealand: C-Tick, Compliance Level 2, Canada: ICES-003 (exempt when factory installed in a transport vehicle), EMC Directive 2014/30/EU, Europe, UK, Australia, New Zealand: EN/IEC 60945:2002, FCC Part 15.19, FCC Part 15.105 (b), ISEDC ICES-003
Video
Day / Night

True day / night operation with mechanical IR cutout filter
Automatic Gain Control

Supported / Multiple Levels
Scanning system

Progressive scan
Mirroring

Horizontal & Vertical
Video Processing

H.264 Codec / Dual Stream
Bit Rate Control

Capped Bit Rate / Variable Bit Rate
Compression

H.264
Illumination

6 x 850nm Infrared - 10 meter range
Frame Rate

25 fps
ONVIF version

21.06 master version
Sensor / DSP

1/4" CMOS Sensor
Field of View

1.8mm Standard (125° HFOV x 70° VFOV)
Power
Power over Ethernet

PoE Class 1 (1.8 W Max) device (IEEE802.3af)
Nominal supply voltage

12 V dc
Operating voltage range

10.8 V dc to 15.6 V dc
Power consumption

1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current

< 150 mA (Maximum) @ 12 V dc
Environmental
Relative humidity

Max. 85%
Waterproof rating

IP66
Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature

-20 °C to +65 °C (-4 °F to 149 °F)
Physical
Dimensions

Base diameter: 59.5 mm (2.34 in), Height: 52.9 mm (2.08 in)
Weight

0.420 kg (0.926 lbs)
What's in the box illustration
What's in the box?


1

CAM300 — includes an approximate 670 mm (2.2 ft) fitted cable, featuring an RJ45 (male) and power connector
2

Mounting screws (3 x)
3

Documentation
4

Hex wrench (Allen key)
5

Waterproof gasket
