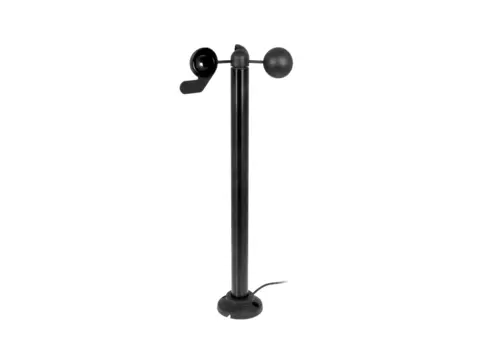

Rotavecta Wind Transducer

Compact wind speed and direction sensor for power boats

Product Options
Rotavecta Wind Transducer

Overview

The Rotavecta wind transducer is a compact sensor providing accurate measurement of relative wind speed and direction for powerboat applications.

When combined with other sensors like boat speed and compass, the masthead transducer provides the necessary wind information to calculate true wind speed, true direction and many other advanced data items.

The innovative design of the Rotavecta transducer allows it to measure both wind speed and direction with a single rotating sensor. The compact footprint allows it to be installed on crowded masts or hardtops.

  • Durable anodized aluminum and UV-stabilized plastic construction
  • Mounting block and interconnect cable included
  • Compatible with i60 Wind, iTC-5, ST60+ and ST60 series instruments
  • 20-meter (65-foot) interconnect cable included

Rotavecta Wind Transducer

Wind speed and direction sensor for powerboat applications

Includes 20-meter (65-foot) interconnect cable. SKU: Z195

Includes 20-meter (65-foot) interconnect cable.


  • 20-Meter (65-foot) interconnect cable included

Rotavecta Wind Transducer Resources

Physical
Dimensions

Height (Surface mount): 385 mm (15.2 in), Height (Including rail clamp): 426 mm (16.8 in), Cup rotation diameter: 187 mm (7.4 in), Cable length: 20 m (65.6 ft)

Weight

Boxed: 1.2 Kg (2.6 lbs), Surface mount: 0.68 Kg (1.5 lbs), Rail mount: 0.77 Kg (1.7 lbs)

Conformance
Standards

EN 60945:2002, EMC Directive 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2

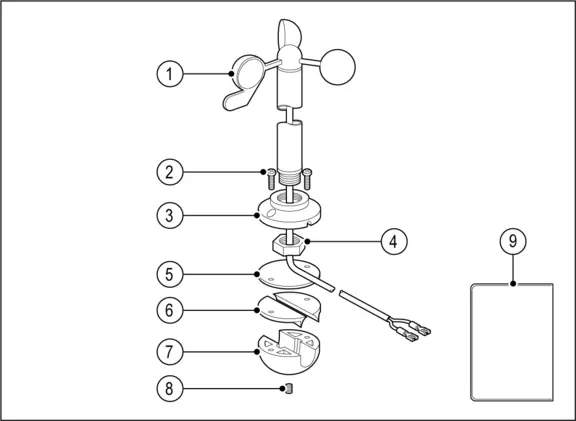

What's in the box illustration
What's in the box?


1

Rotavecta assembly (including 20 m / 65.6 ft. cable)

2

Fixings x 2

3

Retaining ring

4

Nut

5

Seal

6

Packing pieces x 2

7

Rail clamp

8

Grub screw

9

Documentation
