Micro-Talk Performance Sailing Gateway

Data bridge for Micronet Wireless and SeaTalkng wired instrument systems

Product Options

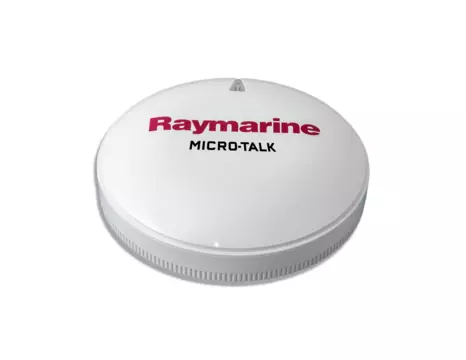

Micro-Talk Performance Sailing Gateway


The MicroTalk Wireless Performance Sailing Gateway seamlessly joins together wired and wireless instrument systems enabling sailors to achieve a new level of high performance wind monitoring!

The compact and waterproof Micro-Talk Gateway can be mounted anywhere onboard and plugs into the boat’s SeaTalkng network. Micro-Talk allows high speed transmission of data such as wind angle, wind speed, depth, boat speed, temperature, heading, GPS data, time, date and navigation information between Raymarine wireless Micronet compatible devices and wired Raymarine SeaTalkng compatible devices and autopilots.

  • Compact, surface-mount design for on deck or below-decks installation.
  • LED network status indicator
  • Automatic, dual-band (968/916 MHz) support for all Raymarine wireless instrument regions.

Micro-Talk Gateway

Dual-band support for all worldwide regions

MicroTalk Wireless Performance Sailing Gateway SKU: E70361

MicroTalk Wireless Performance Sailing Gateway

  • For Europe and Rest of World (868 MHz frequency)

  • For North America, Australia and New Zealand (916 MHz frequency)

  • SeaTalkng and NMEA2000 Compatible

  • Micronet wireless network compatible

Micro-Talk Gateway Resources

Relative humidity

Up to 93%

Waterproof rating

IPx6, IPx7

Storage temperature

-30°C to +70°C (-22°F to 158°F)

Operating temperature

-20°C to +55°C (-4°F to 131°F)


SeaTalkng x 1, Micronet wireless


Height: 26.61 mm (1.05 in) Diameter: 108.48 mm (4.27 in)

Operating voltage range

9 V dc to 16 V dc (protected up to 32 V dc)

Operating frequency

869.8 MHz (UK, Europe and Africa), 915.9 MHz (USA, Canada, South America and Australia)


25 mA

Nominal supply voltage

12 V dc (Supplied by SeaTalkng network)

LEN (NMEA 2000 Load Equivalency Number)


What's in the box?


MicroTalk puck


Mounting gasket




SeaTalkng (White) cable 6 m (19.69 ft)


Threaded studs (M4x40mm) x 3


Finger nuts x 3
