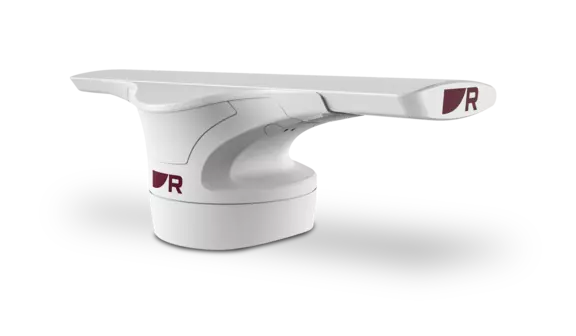

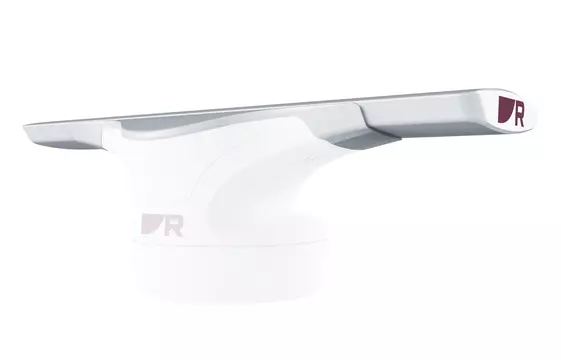

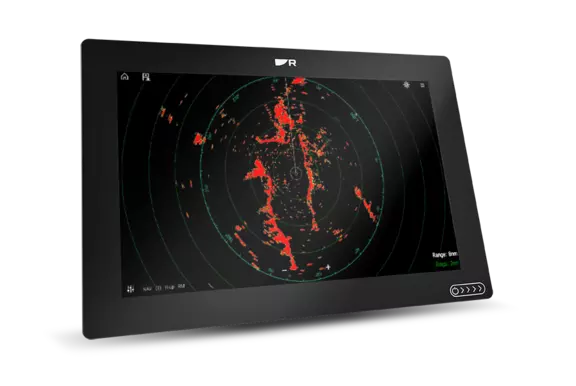

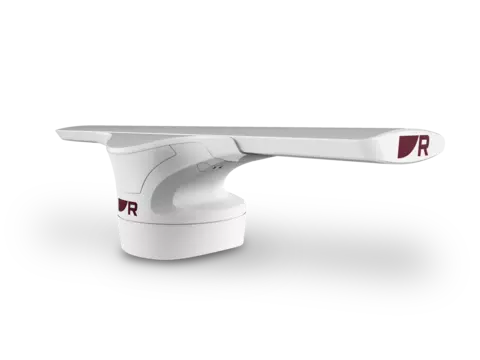

With a 55-watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6kW magnetron radar and gives Cyclone a range of up to 72 nautical miles. Cyclone radars feature innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.

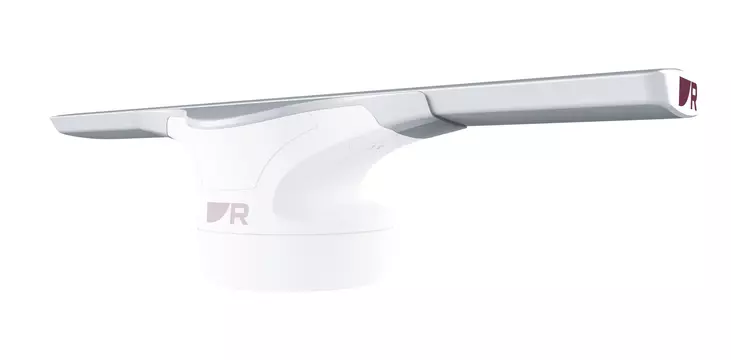

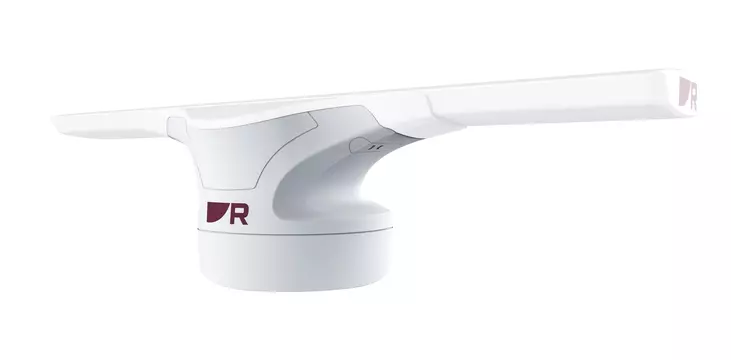

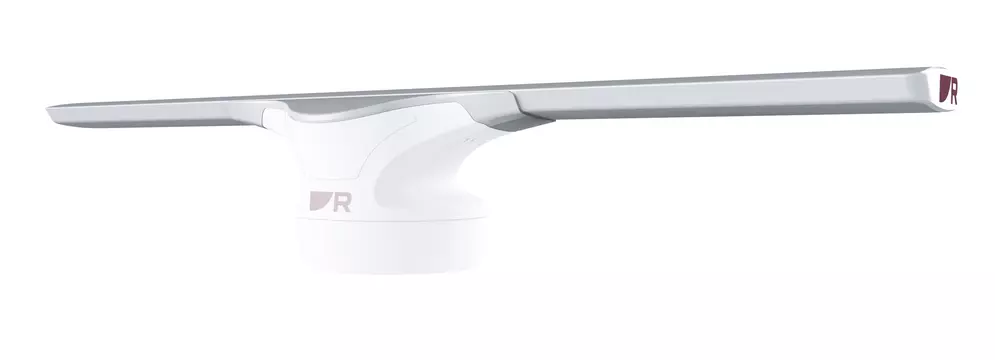

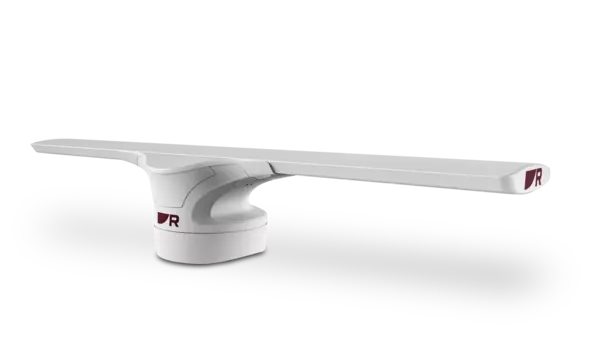

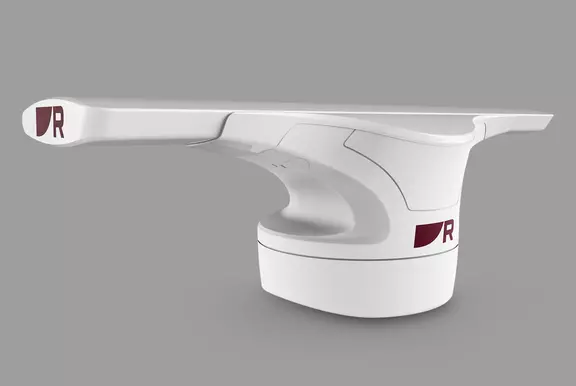

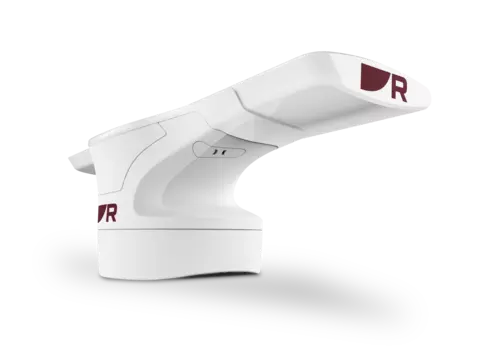

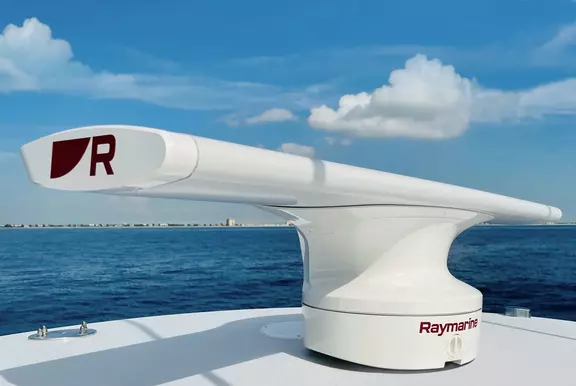

Choose Cyclone in 3, 4, and 6 foot array lengths
Includes 3 foot array and pedestal
Includes 15 meter cable kit
Include VCM100 voltage convertor
Includes 4 foot array and pedestal
Includes 15 meter cable kit
Include VCM100 voltage convertor
Includes 6 foot array and pedestal
Includes 15 meter cable kit
Include VCM100 voltage convertor
Pedestal only
3 foot array only
6 foot array only
4 foot array only
| General | |
|---|---|
| Antenna Size | 3 / 4 / 6 Foot Array |
| Max Range Scale | 72 Nm |
| Rotation Speed | 12 / 24 / 36 / 48 / 60 rpm |
| Boot Up time | 40 seconds |
| Standby to Transmit | Less than 5 seconds |
| Power Connection | 1x Power connector |
| Data Connection | 1x RayNet connector |
| Transmitter Frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Receiver Characteristic | Linear |
| Receiver Noise | Less than 5 dB |
| Power | |
|---|---|
| Peak Power Output | 55 W |
| Supply voltage (Using VCM100) | Nominal: 12 V dc or 24 V dc Minimum: 10.2 V dc Maximum: 31.2 V dc |
| Power Consumption (Typical) | 70 W |
| Power Consumption (Max) | 170 W |
| Power Consumption (Standby) | 30 W |
| Antenna / Beam | |
|---|---|
| Beamwidth (vertical) | 25° |
| Beamwidth (horizontal) | 2.83° |
| Polarization | Horizontal |
| Length | 1031 mm / 40.59 in |
| Weight | 7 Kg / 15.4 lb |
| Pedestal | |
|---|---|
| Dimensions | 388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna) |
| Weight | 16 Kg |
| Environmental | |
|---|---|
| Waterproof Rating | IPX6 |
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Humidity | Up to 93% at 40°C (104°F) |
| Maximum Wind Speed | 100 Kts |
| ARPA | |
|---|---|
| Target tracking | Tracking of 100 simultaneous ARPA targets. |
| Conformance | |
|---|---|
| Standards (Canada) | RSS138 Iss. 1, Technical Acceptance Certificate, Cyclone: IC:4069B-953LPSSR, Cyclone Pro: IC:4069B-953MPSSR |
| Standards (European Union & EFTA) | Radio Equipment Directive 2014/53/EU, Self-Declaration |
| Standards (Australia / New Zealand) | ACMA Declaration of Conformity, Compliance level 3 |
| Standards (USA) | 47CFR Part 80, Certificate of Approval, Cyclone: FCC ID: PJ5-953LPSSR, Cyclone Pro: FCC ID: PJ5-953MPSSR |
| Receiver | |
|---|---|
| Receiver characteristic | Linear |
| Receiver noise | Less than 5 dB |
| Physical (Antenna) | |
|---|---|
| Dimensions | 3 Foot Antenna Length: 1031 mm (40.5 inches) 4 Foot Antenna Length: 1336 mm (52.59 inches) 6 Foot Antenna Length: 1945mm (76.57 inches) |
| Weight | 3 Foot Antenna Weight: 7Kg (15.43lbs) 4 Foot Antenna Weight: 9Kg (19.84lns) 6 Foot Antenna Weight: 12Kg (26.45lbs) |
| Antenna | |
|---|---|
| Polarization | Horizontal |
| Beamwidth (vertical) | 25° |
| Rotation speed | 12 RPM / 24 RPM/ 36 RPM / 48 RPM/ 60 RPM |
| Beamwidth (horizontal) | 3 Foot Antenna:2.83° 4 Foot Antenna:1.99° 6 Foot Antenna1.32° |
| Transmitter | |
|---|---|
| Transmitter frequency | 9370, 9400, 9430 MHz (User Selectable) |
| Peak power output | 55 W |
| Peak power output | 110 W |
| Physical (Pedestal) | |
|---|---|
| Dimensions | 388 mm x 360 mm x 335 mm (to top of antenna) |
| Weight | 16 Kg |
| Connections | |
|---|---|
| Data connection | 1x RayNet connector |
| Power connection | 1x Power connector |

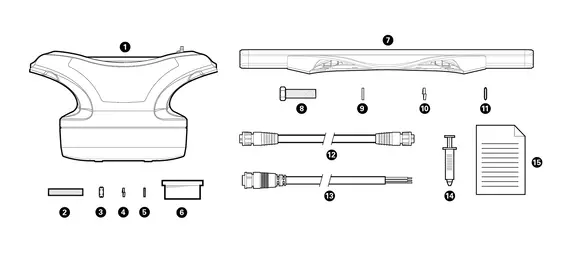

| 1 | Radar pedestal |
| 2 | M10 stud x4 |
| 3 | M10 nut x8 |
| 4 | M10 spring washer x4 |
| 5 | M10 plain washer x4 |
| 6 | Cable gasket |
| 7 | Mounting template |
| 8 | Radar data cable |
| 9 | Power cable |
