60STV

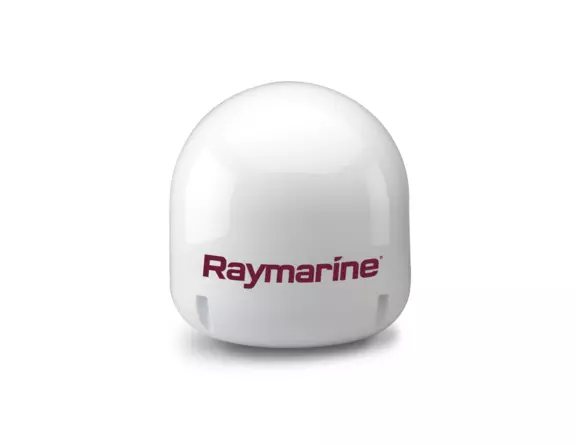

The Raymarine 60STV extends satellite coverage with enhanced satellite tracking in regions prone to weaker satellite signals. The Raymarine 60STV offers all the advantages of the Raymarine 45STV, plus a few more.

Product Options
60STV

Global Satellite TV Antenna

Global satellite services compatibility

The Raymarine 60STV provides the ultimate convenience to connect you up to thousands of Free TV, Pay TV, Standard Definition, and High Definition programming all over the world with one LNB module which incorporates multi (8) LO frequencies,

Hands-free WorldViewTM LNB module

The 2nd generation, patent-pending WorldView LNB module is the latest innovation from Raymarine. Unlike other TVRO system LNB’s with ±1,000 kHz stability, the Raymarine WorldView LNB module is built on the highest stability of ±10 kHz which has 100 times more accuracy and greater signal sensitivity.

In addition, this LNB module receives multi-band and multipolarization satellite TV services around the globe. Therefore, boaters don’t need to manually change the LNB inside the antenna dome each time the vessel crosses into a different satellite service region

DVB-S2 digital TV reception

Some of the HD TV services have moved onto DVB-S2 and will be more in the future. Thanks to Raymarine's ground breaking DVB-S2 digital TV technology, now boaters are able to enjoy their favorite DTH (Direct To Home) entertainment at sea, just like home.


Global satellite library

The 60STV includes the pre-programmed global satellite library which allows boaters to select the desired satellite while travelling from region to region. Once the satellite is selected the WorldView LNB module will automatically switch to the corresponding local frequency to receive the signal.

Wireless Connectivity & Aptus mobile

The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

60STV Key Features

  • Global satellite TV services compatibility
  • Built-in WorldView LNB module
  • DVB-S2 Signal Identification
  • Built-in GPS and auto LNB pol control system
  • Built-in pre-programmed global satellite library



60STV Models


60STV - 60cm Satellite TV System (B4) (auto skew) - Sky Brazil - Europe - Middle East - Mexico

SKU: E70473
60STV - 60cm Satellite TV System (B4) (auto skew) - Sky Brazil - Europe - Middle East - Mexico
  • Satellite TV system for Brazil, Europe, Middle East and Mexico

60STV Resources

Physical
Radome Height

72cm / 28.3”

Radome Diameter

70cm / 27.5”

Reflector Diameter

60cm / 23.6”

Weight

21kg / 46.3lbs

Environmental
Operating Temp. Range

-25°C to +55°C / -13°F to +131°F

Storage Temp. Range

-40°C to +80°C / -40°F to +176°F

Water Ingress

IPX6

Approvals

CE / FCC

Warranty

3 year parts and 2 year labor

Performance
Reception Frequency

Ku-Band (10.7~12.75GHz)

Polarization

Circular and Linear

Minimum EIRP

46dBW

Azimuth Range

680º

Elevation Range

+5º to +90º

Ship’s Motion

Roll ±25º, Pitch ±15º

Roll & Pitch Response Rate

45º / sec

Turning Rate

45º / sec

RF Output

Quad output

Antenna Control Unit
Dimensions (WxDxH)

17.8 x 21.7 x 5.4 cm / 7” x 8.5” x 2.1”

Weight

1.2kg / 2.6lbs

Display

2 line 20 character VFD module

GPS Interface

Built-in (NMEA 0183 GPS)

Power Requirement

9.0~30.0V DC

Power Consumption

Typ. 30W, Max. 50W

LNB LO Frequencies
11.250 GHz

(Polarization: Dual Circular) – Area: North America, Russia

10.500 GHz

(Polarization: Dual Circular) – Area: Latin America

10.750 GHz

(Polarization: Single Circular) – Area: Korea

10.750 GHz

(Polarization: Dual Circular) – Area: China

10.678 GHz

(Polarization: Single Circular) – Area: Japan

11.300 GHz

(Polarization: Dual Circular) – Area: South East Asia

10.700 GHz

(Polarization: Dual Circular) – Area: Australia

Universal Low: 9.75 GHz High: 10.6 GHz

(Polarization: Quad Linear) – Area:  Europe, Middle East, Africa, some Asia countries

What's in the box?


1

RG6 (Antenna - ACU RF Cable) 15m

1

RG6 (ACU - IRD Cable) 3m

1

Power Cable 10m

1

PC Serial Cable 1.8m

1

NMEA Connector 1.5m

1

Power Connector

1

Fixings

1

Aptus software CD

1

Documentation

2

ACU Bracket x2
