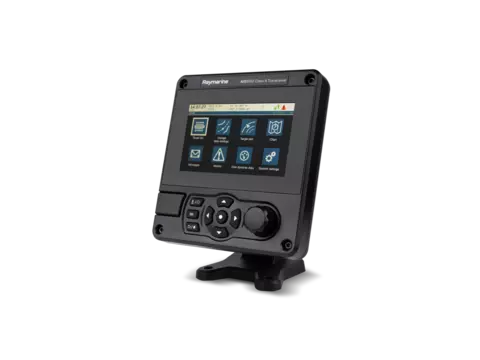

AIS5000 - Class A Transceiver

Designed for maritime first responders, search and rescue (SAR) and law enforcement agencies. The AIS5000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and serves as a gateway device for secure text messaging in the maritime domain.

Product Options
AIS5000 - Class A Transceiver

AIS Transceiver for Maritime First Responders

Designed for maritime first responders, search and rescue (SAR) and law enforcement agencies, the AIS5000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and serves as a gateway device for secure text messaging in the maritime domain.

AIS5000 integrates with Raymarine encrypted multifunction displays to enable secure ship-to-ship and ship-to-shore messaging, tasking, intel sharing, SAR coordination and much more.

Raymarine’s encrypted navigation system is the only system certified to the US Federal Information Processing Standards (FIPS 140-2) and offers Secure but Unclassified Tactical Exchange Data System (STEDS) capability to authorized participating agencies.

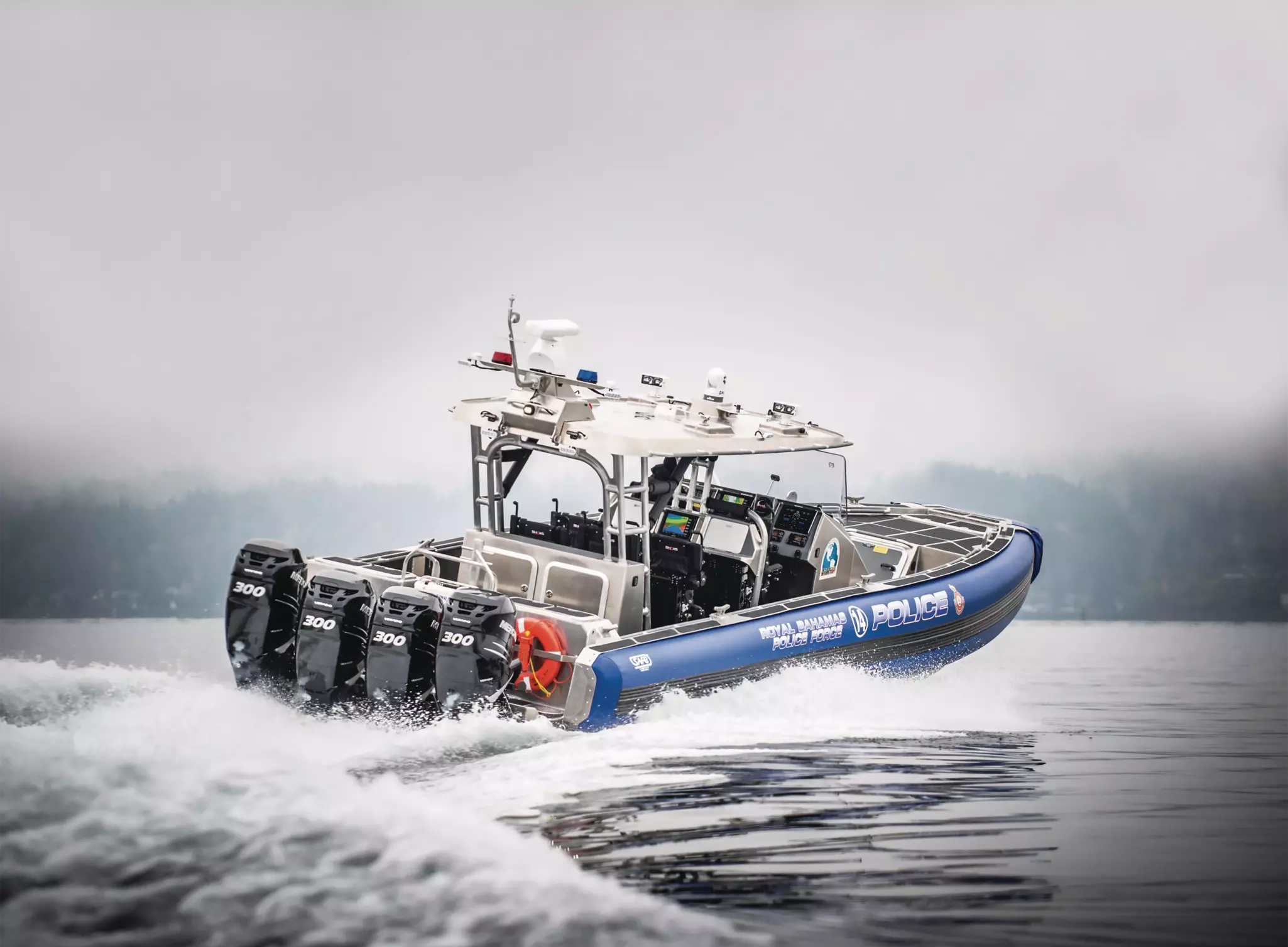

United States Police Speedboat

Secure Maritime Domain Awareness

AIS5000 integrates with LightHouse OS encrypted MFDs to securely pass digital data between friendly units using the VHF-band AIS network.

  • Blue Force Tracking (BFT) of friendly units.
  • Open or covert participation in the AIS network along with partner vessels.
  • Secure text messaging, status reporting, intel sharing and tasking
  • Target of Interest (TOI) designation and interception
  • Over-the-air reception and automatic SAR pattern plotting

Advanced Class A AIS Capabilities

AIS5000 is a full-function Class A Automatic Identification System transceiver enhanced for First Responder applications.

  • Fourth generation AIS technology for expanded speed, range and processing performance
  • Full color target display with optional ENC mapping
  • Integrated Man Overboard/SAR Transponder track and management system
  • Silent mode (receive-only) mode for anti-piracy and EMCON operations

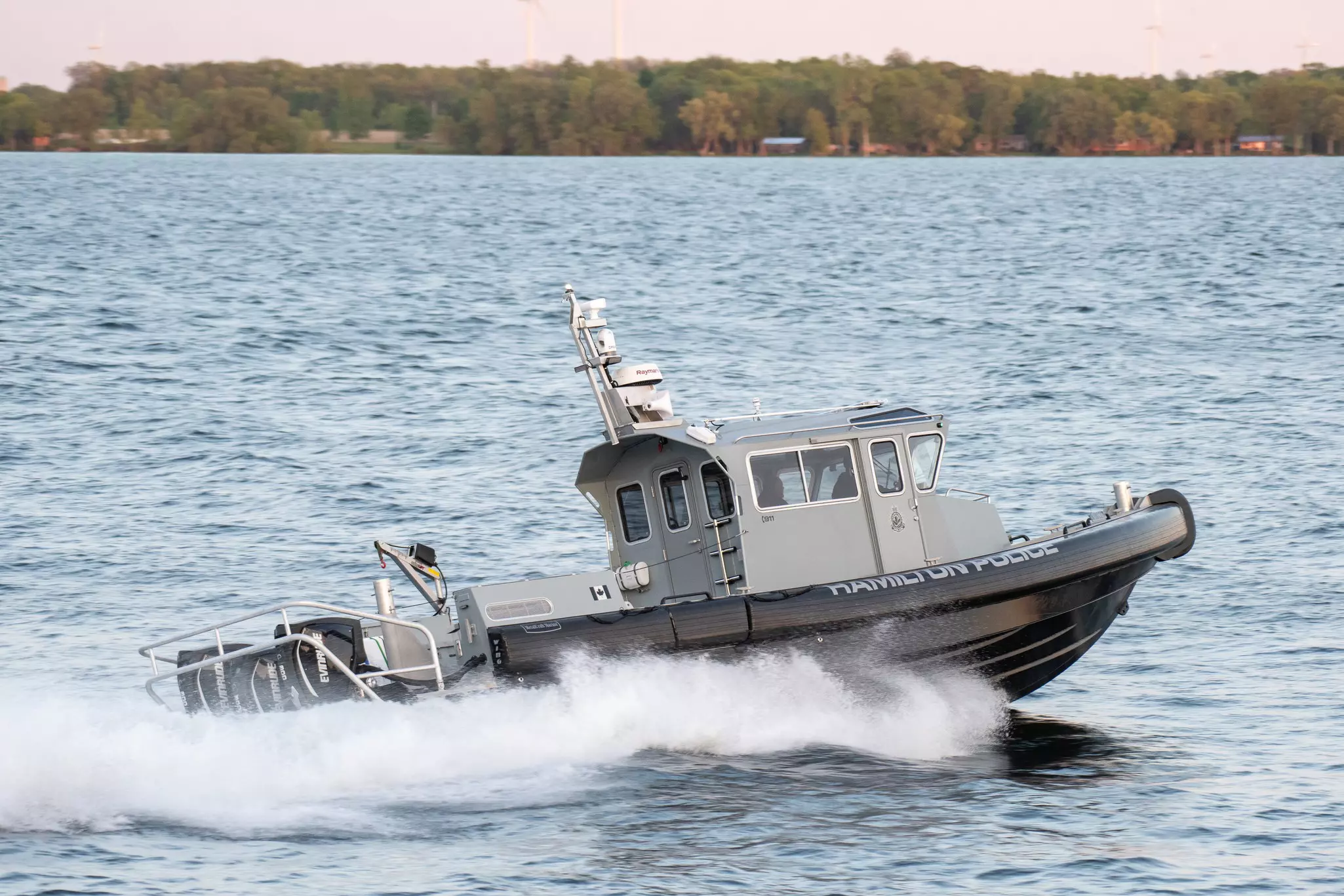

Hamilton Police Interceptor

Rugged and Versatile

Engineered to withstand the toughest conditions, AIS5000 is right at home onboard all vessels from the largest ocean-going ships to small, fast RIBs and interceptors.

  • Certified to the highest industry standards for waterproofness, shock and vibration
  • Compact enclosure with NMEA2000 and NMEA0183 connectivity
  • Optional junction box available for expanded shipboard sensor and ECDIS connectivity
  • Flexible overhead, bulkhead, desktop and surface mount options

AIS5000 Models


AIS5000 SKU: E70529

AIS5000


AIS5000 Resources

Physical
Dimensions

152 mm × 165 mm × 79 mm

Weight

2 kg

Electrical
Power supply

12 to 24 VDC

Power consumption

<12 W

Connectors
VHF antenna connector

Yes

GNSS antenna connector

Yes

Power

Two-pin connector (cable provided)

Serial interfaces and alarm relay

18-pin connector (cable provided)

Serial inputs

14-pin connector (cable provided)

NMEA 2000

NMEA 2000 micro connector

Data Interfaces
NMEA 0183 (IEC61162-2) bi-directional ports

3

NMEA 0183 (IEC61162-1) bi-directional ports

3

DGPS correction data input (ITU-R M.823-2)

1

Alarm relay output

1

NMEA 2000

1

Wi-Fi

802.11 b/g/n

Pilot Port

1 (optional)

Standards Compliance
AIS standard

IEC 61993-2 Ed 2.0
TU-R M.1371-5
CCNR VTT Ed 2.0

Serial data interface standards

IEC 61162-1 Ed 4.0
IEC 61162-2 Ed 1.0
IEC 61162-3 2008 Ed 1.2

Environmental Standard

IEC 60945 Ed 4.0

GNSS performance standard

IEC 61108-1 Ed 2.0
IEC 61108-2 Ed 1.0

Product safety

IEC 60945 Ed 4.0

VHF Receiver
Transmitter

1

Receiver

3

Frequency

156.025 MHz to 162.025 MHz

Output Power

1 W or 12.5 W (automatic)

Channel Bandwidth

25 kHz

Channel Step

25 kHz

Modulation Modes

CMSK-TDMA

Bit Rate

9,600 bits/sec

Receiver Sensitivity

-107 dBm @ 20% PER

GNSS Receiver and Transceiver
Channels

72

GNSS systems

Supports parallel dual mode operation from GPS and GLONASS

IEC61108-1

Compliant

IEC61108-2

Compliant

GNSS antenna

Supplied

User Interface
Display

5” 800 × 480 full color LCD display

Encoder

Rotary encoder for selection and entry

Keys

Four menu keys and four direction keys

MicroSD

microSD™ slot for software updates and charts

Environmental
Waterproof

IPx6 and IPx7-rated for water ingress

IEC 60945

‘Protected’ category

Operating Temperature

-15°c to +55°c
