i50 Speed

The i50 Speed displays through water speed or speed over ground along with sea surface temperature and trip and log data.

Product Options
i50 Speed
i50 Speed

Compact and Powerful

The i50 Speed instrument display is designed for easy viewing of your boat’s speed through the water or speed over ground. The i50 Speed instrument can also display trip and log data as well as water temperature. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

i50 Speed Key Features

  • Oversized digits for easy viewing by day or night
  • Red backlighting enhances night visibility
  • SeaTalk NG, NMEA2000 and SeaTalk network compatible
  • Built-in speed/temperature transducer interface
  • Compact footprint
  • Low power consumption
  • Surface mount or optional trunnion mount kit


i50 group

Full Integration with Raymarine Equipment

All i50 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i50 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. I50 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

i50 Speed Models

Choose the i50 Speed display only or an i50 Speed pack with transducer

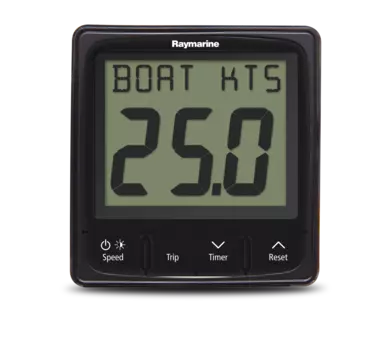

i50 Speed Display (Digital) SKU: E70058

i50 Speed Display (Digital)


  • i50 Speed Display (Digital) only

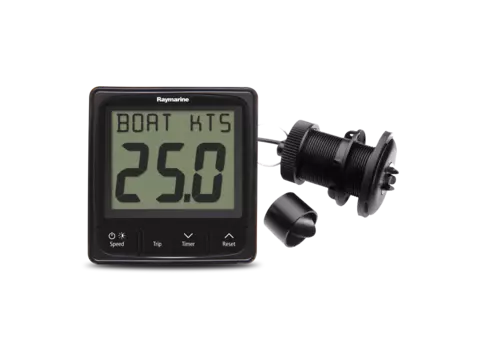

i50 Speed Pack, with Through Hull Transducer SKU: E70147

i50 Speed Pack, with Through Hull Transducer


  • i50 Speed Pack with P120 retractable speed/temp through hull transducer

i50 Speed Resources

Physical
Dimensions

Width: 110 mm (4.22 in), Height: 115 mm (4.52 in), Depth: 44 mm (1.7 in)

Connections

2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections

Environmental
Relative humidity

Max. 93%

Waterproof rating

IPx6

Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)

Operating temperature

-20 °C to +55 °C (-13 °F to 131 °F)

Conformance
Standards

Europe 2004/108/EC

Power
Current (typical / max)

45-65 mA (display only) / 200 mA maximum (transducer connected)

Nominal supply voltage

12 V dc

Operating voltage range

10 V dc to 16 V dc

Power consumption

< 1 W typical (display only), 2.4 W maximum (transducer connected)

LEN (NMEA 2000 Load Equivalency Number)

4

What's in the box?


1

i50 Instrument display

2

Suncover (to match i70s, p70s, p70Rs, eS Series)

3

Front bezel (to match i70s, p70s, p70Rs, eS Series)

4

Gasket

5

Suncover (to match a, c, e Series)

6

Front bezel (to match a, c, e Series)

7

400mm (15.7 in) SeaTalkng spur cable

8

SeaTalkng blanking plug

9

Fixing screws x4

10

Documentation
