Find out morePremium multispectral marine camera with stabilization and extended range
Featuring a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C-LR provides an elite level of awareness on the water. The M364C-LR uses multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology.
Color Thermal Vision blends visible camera details with a thermal image, allowing captains to positively identify navigation aids and other vessels within the thermal scene.
Outstanding imaging performance, a narrow field of view lens for extended range performance, and gyro-stabilization make the M364C-LR an indispensable tool for law enforcement professionals and commercial mariners.
Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
M364C-LR contains a thermal imaging sensor and HD low light camera for high-performance multispectral imaging. The ability to capture thermal and visible-light detail allows Color Thermal Vision (CTV) technology to offer a more complete view of what lies ahead.

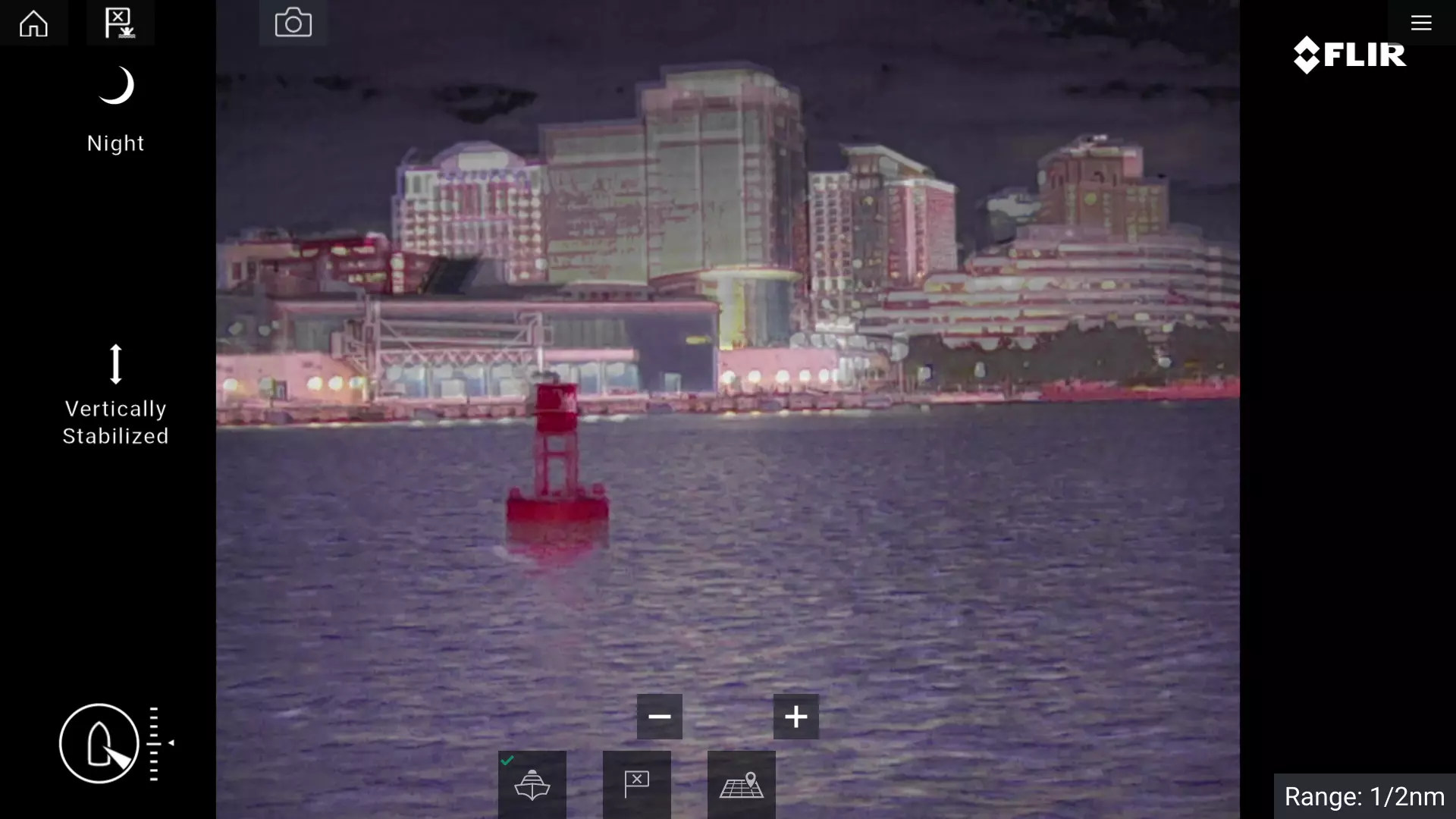

Exclusive FLIR Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene.
30 Hz Refresh Rate
9 Hz video refresh rate
| Thermal Camera | |
|---|---|
| Focus | Fixed 12 ft (3m) to infinity |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| Thermal Detector Type | 640x512 VOx Microbolometer |
| Thermal E-Zoom | 8x Continuous |
| Thermal Field of View | 18 ° x 13.5 ° |
| Thermal Focal Length | 25 mm |
| Video Refresh Rate | 30 Hz or <9 Hz |
| Visible Camera | |
|---|---|
| Lines of Resolution | Up to 1920 x 1080 @ 30fps |
| Minimum Illumination | 0.1 lux (ICR off, slow shutter off, high sensitivity off) / 0.006 lux (ICR on, slow shutter off, high sensitivity off) |
| Visible Detector Type | 1/2.8” CMOS |
| Visible E-Zoom | 12x |
| Visible Field of View | Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV |
| Visible Focal Length | 129 mm to 4.3 mm |
| Zoom | 30× Optical Zoom |
| System | |
|---|---|
| Analog Video Connector Type | BNC |
| Analog Video Output | NTSC/PAL User Settable |
| ClearCruise AR Analytics | Yes, with Raymarine Axiom and AR200 module |
| Current | Peak 10.0 A |
| Firefighter Mode | No |
| Gyro Stabilized | Yes |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Four, Independent H.264/MJPEG Network Video Streams |
| ONVIF Conformance | Profile S |
| Operating Voltage Range | -10% to +30% of Nominal Supply Range |
| Pan-Tilt Adjustment Range | 360° Continuous Pan, ± 90° Tilt |
| Power Consumption | 41 W (typical) 56 W (max) |
| Environmental | |
|---|---|
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Near Strike at 2kV |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Salt Mist | IEC60945 |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
| Shock | 15 g vertical, 9 g horizontal |
| Storage Temperature Range | -22°F to +158°F (-30°C to +70°C) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Physical | |
|---|---|
| Size | Camera: 8.7” (222mm) x 12.9” (328mm) / Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm) |
| Weight | Camera: 13.9lbs (6.3kg) / Camera with Top-Down Riser: 14.9lbs (6.8kg) |
| Range Performance | |
|---|---|
| Detect a 30-foot Vessel | 2.0nm (3700m) |
| Detect Human Sized Target | 0.6nm (1030m) |
| NATO Target 2.3m x 2.3m at 50 Pct. | 1.3nm (2370m) |
| 1 | Thermal camera |
| 2 | Thermal camera base-seal |
| 3 | Thermal camera gasket |
| 4 | RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) |
| 5 | Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) |
| 6 | Right-angled HD-SDI video cable (with BNC connectors) 3 m (9.8 ft.) |
| 7 | Right-angled power/NMEA 0183/video cable 3 m (9.8 ft.) |
| 8 | Mounting riser |
| 9 | Fixings: 3x M6 dome nuts, 3x M6 threaded studs, 3x M6 spring washers, 3x M6 nyloc nuts, and 2x M6 flat washers |
| 10 | Self-adhesive decals (for ball-down mounting only) |
| 11 | Documentation |
